Low Cost OEM Modules

As an inexpensive alternative to FLEXPOINT® laser modules Laser Components offers a series of the smallest laser modules. Both dot lasers in 10 differently-sized housings and a line laser are available. The smallest dot laser has a housing diameter of just 3.3 mm. These laser modules are available at 635/650 nm and 780/850 nm.

Low-Cost Line and Cross-Hair Lasers

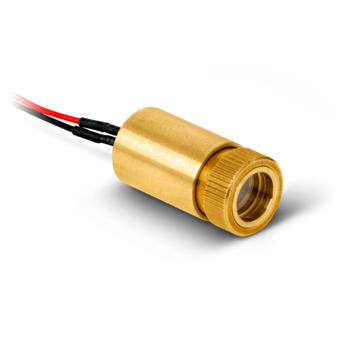

With its LC-LMP series, Laser Components offers different dot and cross-hair lasers at 635 nm (red). This series features an adjustable focus.

Description

The LC-LMP series lasers produce either a bright red cross hair or a bright red line (635 nm). The adjustable focus makes it possible to set the focus of the laser to any distance. The laser power is <3 mW; the modules are operated with 3 VDC.

The LC-LML-635-01 line lasers feature a large fan angle of >120°. There are versions available at <1 mW and <3 mW.

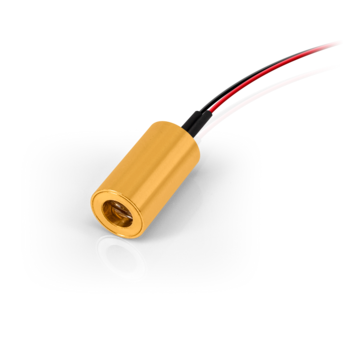

The space-saving LC-LML-635-09 and LC-LMC-635-09 models only measure 16.5 mm in length and only 9 mm in diameter. With an aperture angle of 60°, they provide a maximum laser power of 5 mW.

The green line lasers LC-LML-515-01-03-TM-C (beam angle: 120°) and LC-LMD-515-09-03-60-TM-C (beam angle:60°) are ideally suited for positioning applications at laser powers below 3 mW.
