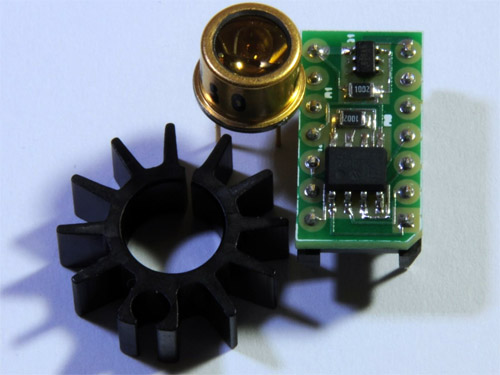

The Cal Sensors’ PIREPLUS consists of the PIRE infrared emitter and the associated drive electronics module.  The components have been designed as a system to provide maximum output over a range of pulse frequencies.

The PIRE emitter (SPF220-5M2) has been designed to optimise both heat-up and cool-down performance of the filament, producing typical pulse frequencies of 180Hz at 50% modulation depth.

KEY FEATURES:

• high output emitter, 0.04 Watts/cm²
• fast pulse rates, up to 180 Hz with 50% modulation depth
• easy to apply with integrated electronics in 14 pin IC
  lower overall system costs
• compact with TO-5 package and 14 pin IC
• software support of custom pulse configurations
• 88% emissivity

The associated drive electronics are matched to the emitter to provide the optimum drive waveform over a range of frequencies and ensure peak output temperatures at all frequencies. Together these components provide the customer with a convenient source of pulsed infrared energy that can be used to improve the performance of infrared detection systems.

APPLICATIONS INCLUDE: gas analysis, medical and industrial, environmental monitoring, spectroscopy, process control systems, and plastics sorting.


Datasheet:

 PIRE^PLUS IR-Emitter 640 K
