High Power Laser Diodes with Volume Bragg Grating
Pure wavelength precision – stabilized high power laser diodes with VBG
High Power Laser Diodes
The wavelength of a laser diode is easily stabilized when used together with volume bragg gratings (VBG) by PD-LD. At the same time, the FWHM value is reduced to <0.5 nm. The wavelength is stabilized with a precision of 0.5 nm and the issue of temperature is no longer critical (typically 0.01 nm/°C).
LuxxMaster™ laser diodes are delivered complete with VBG and collimating optics.

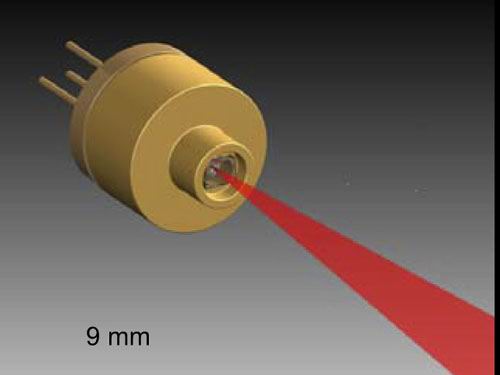

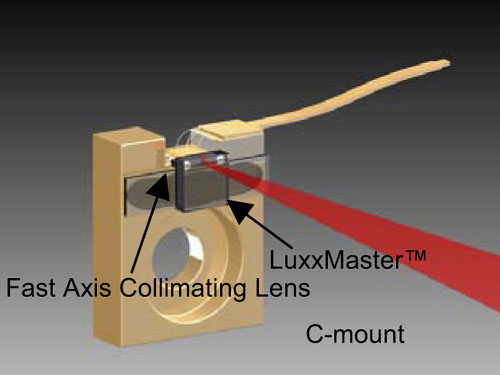

Standard wavelengths include 785 nm, 808 nm, and 976 nm with an optical output power of 1 – 3 W for single emitters and 20 – 40 W for bars. The stabilized laser diodes are mounted in 9-mm cans, in TO3 cans, or on C-mounts. The TO3 version is also available with a cooler.
Laser diodes of the LuxxMaster™ series are highly suitable for a whole range of applications:
- Highly efficient pumping of solid state lasers
- Pumping of new lasers (e.g. thin disk lasers) that require a very narrow pump wavelength
- Reducing or even eliminating the red shift caused by aging to increase the lifetime of a pump array
- Sensor technology, chemical analysis, and certain medical applications that rely on exact center wavelengths.
- LuxxMaster Wavelength Stabilized 40 Watt Laser Arrays for 794.7 nm (PDF, 479.2 KB)
- LuxxMaster Wavelength Stabilized 40 Watt Laser Arrays for 795.0 nm (PDF, 482.1 KB)
- LuxxMaster Wavelength Stabilized 20 Watt Laser Arrays for 808 nm (PDF, 475.3 KB)
- LuxxMaster Wavelength Stabilized 40 Watt Laser Arrays for 808 nm (PDF, 437.6 KB)
- Luxxmaster 532 nm Butterfly Free Space (PDF, 221.7 KB)
- Luxxmaster 532 nm Butterfly Multi Mode (PDF, 331.1 KB)
- Luxxmaster 532 nm Butterfly Single Mode (PDF, 299.6 KB)
- Luxxmaster 647 nm Butterfly Free Space (PDF, 456.2 KB)
- Luxxmaster 785 nm Butterfly (PDF, 393.5 KB)
- Luxxmaster 785nm Coaxial 60 mW (PDF, 232.2 KB)
- Luxxmaster 785 nm Coaxial 100 mW (PDF, 258.9 KB)
- Luxxmaster 785 nm Coaxial 500 mW (PDF, 197.0 KB)
- Luxxmaster Volume Bragg Grating Elements (PDF, 347.3 KB)
- Luxxmaster Volume Bragg Grating Element Longitudinal (PDF, 196.9 KB)
