Pulsed Laser Diodes

Pulsed laser diodes (PLDs) are available in the wavelengths 850 nm, 905 nm and 1550 nm. All of our PLDs are developed and manufactured at our Laser Components production facility in Canada. Customer-specific requests can, therefore, easily be accommodated.

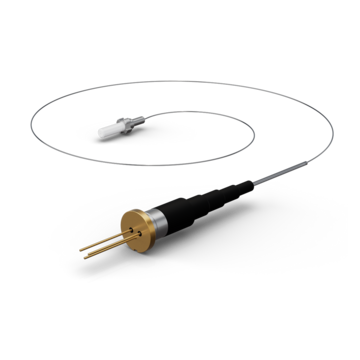

Pulsed Laser Diodes with Fiber Pigtail

For military rangefinders

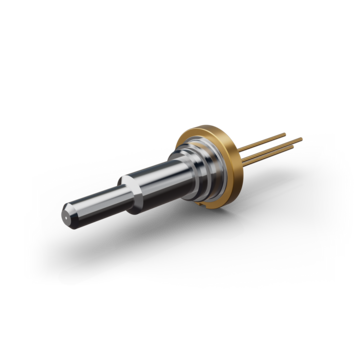

Square Fiber PLD

Fiber pigtailed pulsed laser diodes. 905 nm and 1550 nm versions available.

LASER COMPONENTS Canada, Inc. presents fiber-coupled pulsed laser diodes at 905 nm and 1550 nm. The high coupling efficiency of these lasers is achieved through a special coupling technique.

With a semi-automatic mounting setup, fibers can be precisely assembled to within just a few µm. This allows coupling efficiencies of > 85% to be achieved. Depending on the laser diode chip and fiber core diameter, peak power levels of > 65 W out of the fiber can be reached.

We not only offer standard versions, but customer-specific versions as well. In fact, our ability to develop inexpensive customer-specific solutions is one of our strengths. Please contact us.

The pigtailed pulsed laser diodes are available on a standard basis at wavelengths of 905 nm and 1550 nm.

The following versions are available:

905 nm pulsed laser diodes

  • 12 W from a 105 µm fiber
  • 145 W from a 400 µm fiber

1550 nm pulsed laser diodes

  • 7 W from a 105/125 µm fiber (NA 0.15)
