ERIS Phase SLM

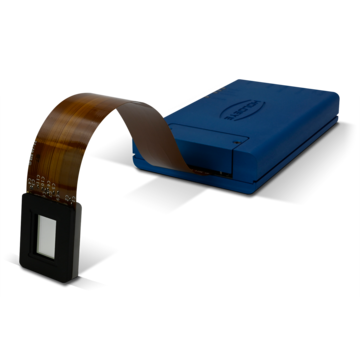

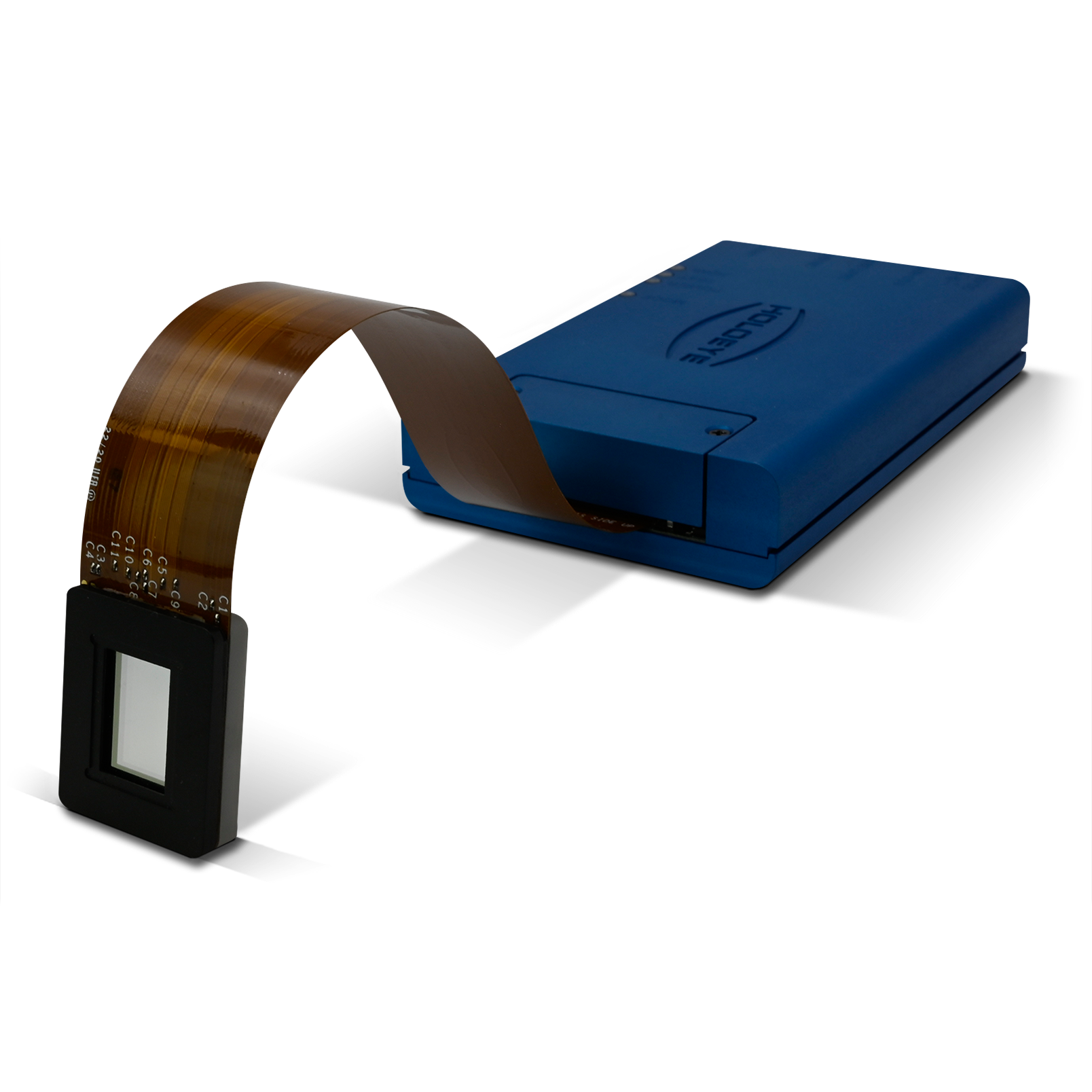

ERIS phase-only Spatial Light Modulator

Featuring 0.717" LCOS micro-display and a resolution of 1920x1200 pixels with 8µm pixel pitch, the ERIS phase-only Spatial Light Modulator supports 8-bit as well as 10-bit phase levels. This allows for the highest level of precision and accuracy when it comes to manipulating light for research and development applications.

As a plug-and-play device using the Pattern Generator software or the SLM Slideshow Player software, it can easily connect to standard graphics cards as an extended monitor device. The ERIS driver uses an HDMI interface and a USB connection to address phase functions and communicate with its driver software.

Key Features:

• Wavelength Range: 420 – 1100 nm

• Drive Scheme: Analog

• Display Type: Reflective LCOS (Phase Only)

• Resolution: 1920 x 1200 Pixel

• Pixel Pitch: 8 µm

• Fill Factor: >92 %

• Active Area / Diagonal: 15.42 x 9.66 mm (0.717” Diagonal)

• Phase Levels: 256 (8-bit) or 1024 (10-bit)

• Input Frame Rate: 60 Hz
