UP Laser Power Detectors

The UP series are standard laser power detectors with a power range from mW up to 500 W (depending on the model).

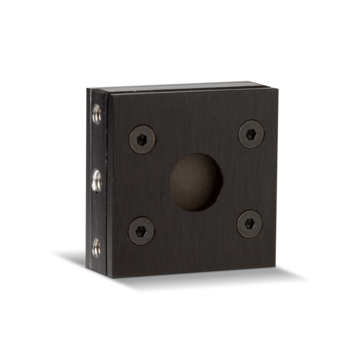

UP-H Series: Power Detectors with Standard Coatings

The thermopile based laser power detectors with standard broadband coatings are availabe in for sizes. The modular concept of these measurement heads increase the power capability of the detectors. 3 different cooling modules are available: Convection (S, H or L), Fan (F) or Water (W).

Details of the UP-H detectors

  • High Performance.
    Fast rise time
    High damage threshold
  • Compact design.
    The detectors are very thin
  • Energy Module
    It is possible to measure the single shot energy
  • Smart Interface
    Containing all the calibration data

UP-W, UP-VR, and UP-QED Series: Power Detectors for Lasers with Extreme Power and Energy Density

There are two additional series available:

UP-W Laser Power Detectors

  • Very high damage threshold coating
    100 kW/cm² in average power density
  • 17 or 50 mm Ø aperture - perfect for the largest beams

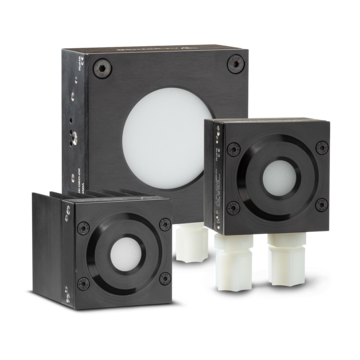

UP-QED Power Detectors

  • Integrated diffusor allows for power measurement at the highest powers and energy densities.
  • Available with apertures of 16 or 52 mm and various cooling options.
