InGaAs Photodiodes 500 - 2600 nm

Infrared (IR) photodiodes with an emphasis on quantum efficiency

LASER COMPONENTS develops and manufactures photodiodes in the spectral range of up to 2600 nm in the Near-Infrared (NIR).

InGaAs Detectors

The Indium Gallium Arsenide (InGaAs) Detectors series IG17, IG22, IG26X, and IG26H were developed with an emphasis on quantum efficiency.

Main Applications for IR Photodiodes:

  • Spectroscopy (and FT-NIR in particular)
  • Laser monitoring
  • Non-contact temperature measurement
  • Tunable diode laser spectroscopy (TDLS)
  • Spectrophotometry, e.g. for measuring moisture
  • Sorting applications
  • Flame regulation
  • Gas detection

InGaAs and Extended InGaAs Photodiodes by LASER COMPONENTS

LASER COMPONENTS produces photodiodes in house at our production facility in Arizona. They have been available on the market since 2013 and offer a strong cost-performance ratio.

The following InGaAs detectors and Extended InGaAs photodiodes are available:

  • IG17 series (500-1700 nm)
  • IG22 series (500-2200 nm)
  • IG26X series (500-2600 nm)
  • IG26H series (500-2600 nm)

This product portfolio was designed with great attention to detail: One of our most obvious features is the panchromatic nature of all of our InGaAs photodiodes, providing detection down to 500 nm. Further advantages include a lower temperature coefficient and a reduced off-area sensitivity.  

With a 50 % cut-off wavelength ranging from > 1.65 µm for the IG17 series, to > 2.45 um for the IG26X series, this portfolio is ideal for spectroscopic and radiometric applications. Additionally, the IG26H offers the similar performance to the IG26X for reverse bias use cases where high shunt resistance is required.

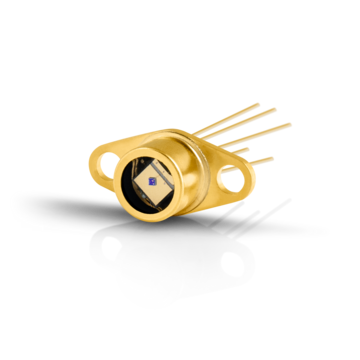

Active diameters from 0.25 mm to 3 mm are available as standard, and are available in hermetically sealed TO housings with or without an integrated Peltier cooler, as an SMD, on a ceramic mount, or simply as a chip.

In addition to the industry standard sizes of 1 mm and 2 mm, we also have an in-between active area size available: 1.3 mm. This makes it possible to package the photodiode in a TO-46 housing (with a base diameter of 5.3 mm), delivering 70% more signal in the same housing dimensions compared to a photodiode with an active area of 1 mm.

Customer-specific designs are possible, such as hermetic integration of interference filters.

Detector Search
Find the right detector and the respective data sheet in just a few clicks.

Detector Selector

Key Features Include the Following

  • Peak sensitivities from 1.05 A/W to 1.45 A/W
  • High dynamic range
  • High linearity
  • Low temperature coefficient of the sensitivity of up to 0.01%/K
  • Panchromatic, i.e. sensitive in the Visible and NIR ranges

Supplier

Our IR Detectors

Panchromatic, photoconductive and thermal detectors

InGaAs PIN Photodiodes

Modern InGaAs PIN photodiodes are panchromatic and convert broadband light to photocurrents in the Visible-NIR range. Concretely speaking, this means a sensitivity range from 500 nm to 1700 nm for regular InGaAs and – in increments – up to 2600 nm for extended InGaAs.



PbS and PbSe Detectors

PbS is a standard Short-Wave Infrared (SWIR) semiconductor detector (1 - 3.3 µm) whereas PbSe is used in the Mid-Wave Infrared (MWIR) range (1 - 4.7 µm when uncooled; up to 5.2 µm when cooled). Our PbS and PbSe detectors are photoconductive; the detector resistance is reduced during illumination. The crystal structure is polycrystalline and is produced via chemical deposition.

Pyroelectric IR Detectors

A pyroelectric IR detector is a thermal detector in that it responds to the change in heat (IR) absorbed on its surface. Thermal detectors are polychromatic with a very wide spectral bandwidth.

The nature of the pyroelectric effect is that in a highly-ordered crystal (or ceramic), a temperature change in the element causes its atoms to move slightly out of position. This rearranges its electrical charge, which is measured in the electrodes on its surface.

The pyroelectric effect is found in many materials.  The most commonly-used materials are deuterated lanthanum α alanine-doped triglycine sulfate (DLaTGS) and lithium tantalate (LTO).

Jim Dell
Do you have any Questions?
Call us!
Click here

Detector Selector

Find the right Detector with just a few clicks

Tailored to your requirements

Easily identify the right detector for your application with our intuitive search tool. Simply enter your specifications, and you will get an instant overview of matching detectors from our extensive product portfolio.

If multiple options appear, or if no exact match is found, our team is here to help. Contact us directly, and your personal sales contact will guide you to the best choice, or even develop a customized detector designed specifically for your needs.

Type
Wavelength [nm]
Size
Package

Your Detector
Search Results

30 Detectors

*) Size: Diameter for round, side length for square detector surfaces
Component Designation
Datasheet
Wave­length
Size*
Package
Quantity requested
Produkt
IG17X080S4i
Download datasheet Wave­length1100-1700 nm Size0.08 mm PackageTO
IG17X250S4i
Download datasheet Wave­length1100-1700 nm Size0.25 mm PackageTO
IG17X500S4i
Download datasheet Wave­length1100-1700 nm Size0.50 mm PackageTO
IG17X1000S4i
Download datasheet Wave­length1100-1700 nm Size1 mm PackageTO
IG17X1300S4i
Download datasheet Wave­length1100-1700 nm Size1.30 mm PackageTO
IG17X2000G1i
Download datasheet Wave­length1100-1700 nm Size2 mm PackageTO
IG17X3000G1i
Download datasheet Wave­length1100-1700 nm Size3.00 mm PackageTO
IG17X1000T7
Download datasheet Wave­length1100-1700 nm Size1.00 mm PackageTO
IG17X1300T7
Download datasheet Wave­length1100-1700 nm Size1.30 mm PackageTO
IG17X2000T7
Download datasheet Wave­length1100-1700 nm Size2.00 mm PackageTO
Your Product Selection

What is Your Challenge?

Beyond Borders

What Kind of Customized Detector do you need to design innovative products for the future?
Employee of LASER COMPONENTS US Employee of LASER COMPONENTS US
Jim Dell
LASER COMPONENTS USA Inc.

News & Events

from the infrared world

Dr. Richard Kim - The Photonics 100 Dr. Richard Kim - The Photonics 100
News
15.10.2025
Detector R&D Director, Dr. Richard Kim, Named in Photonics 100
Going beyond borders in the photonics industry

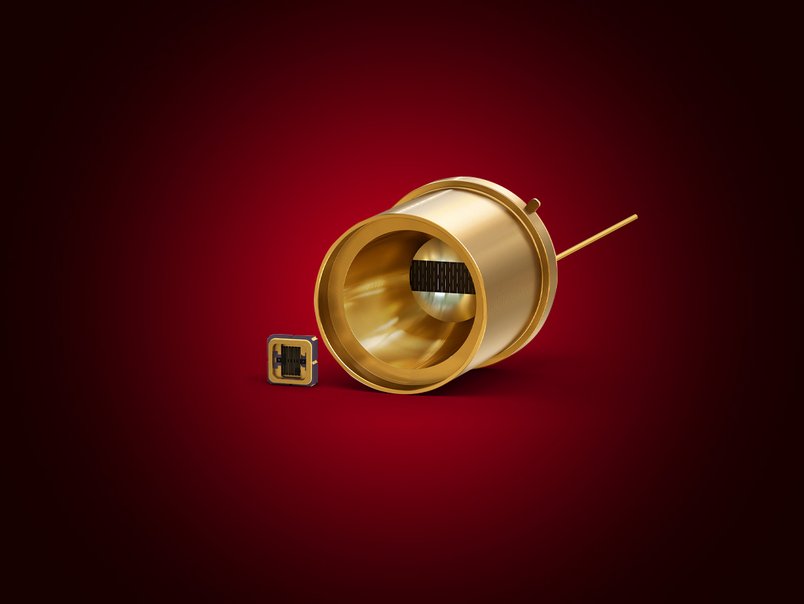

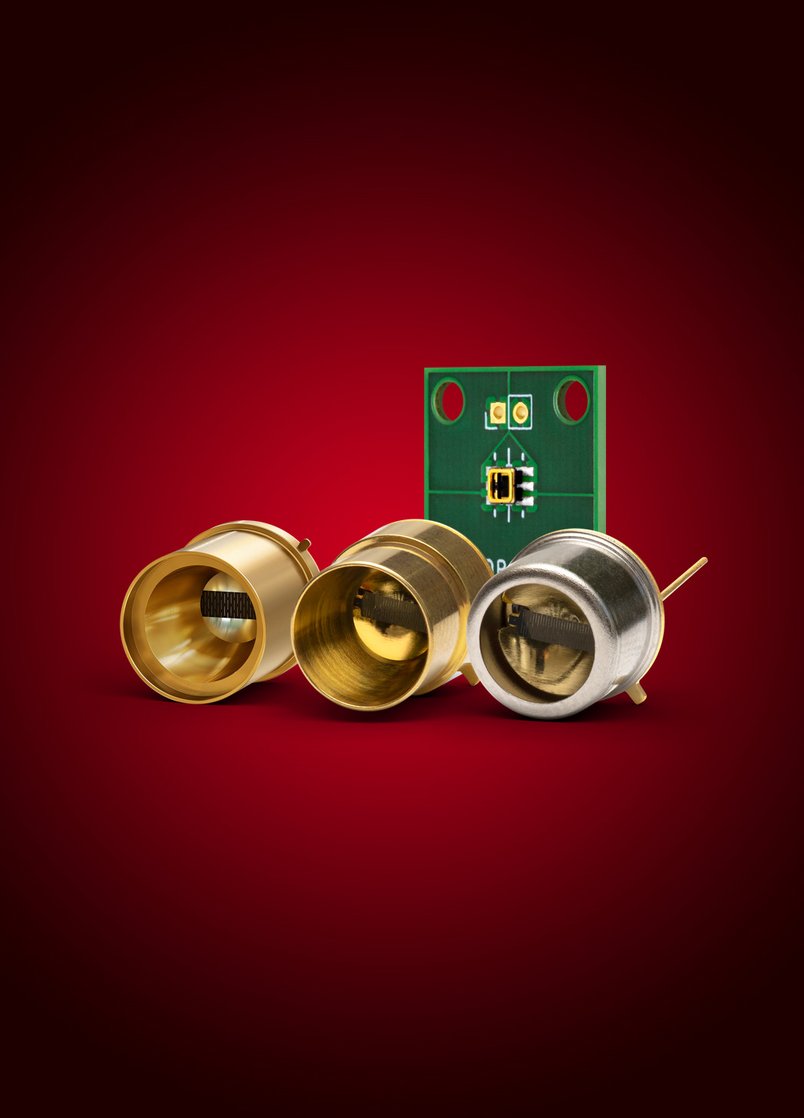

Infrasolid Infrared Emitters Infrasolid Infrared Emitters
News
25.08.2025
Long-Lasting Infrared Technology
High-quality manufacturing ensures greater reliability in demanding applications
PR No3 – IR 4 Quadrant Pyroelectric Receiver PR No3 – IR 4 Quadrant Pyroelectric Receiver
News
23.06.2025

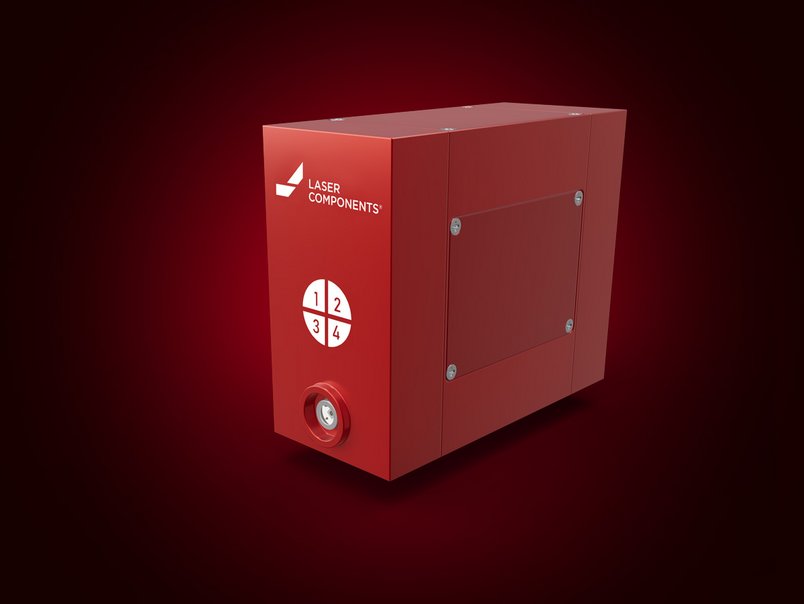

QUICKLY MEASURE BEAM ALIGNMENT WITH THE PR No3
