High light intensity and thermoelectric cooling (TEC)
Short exposure times of high-end cameras require the highest performance from the light source. The FLEXPOINT® MVgoldHP laser module from LASER COMPONENTS provides the necessary power to ensure a consistently bright and uniform line - even under extremely challenging lighting conditions.
Up to 2000 mW output power
The FLEXPOINT® MVgoldHP module combines a high light intensity of up to 2000 mW with intelligent cooling and digital modulation. It is ideal for industrial applications in machine vision where speed, brightness and precision are equally important – for example in high-performance scanners.
Continuous and stable operation
Thanks to the integrated thermoelectric cooling (TEC), the laser module remains stable even during continuous operation. The digital modulation (active high or active low) enables perfect synchronization with the camera exposure time.
Adaptable to any machine vision application

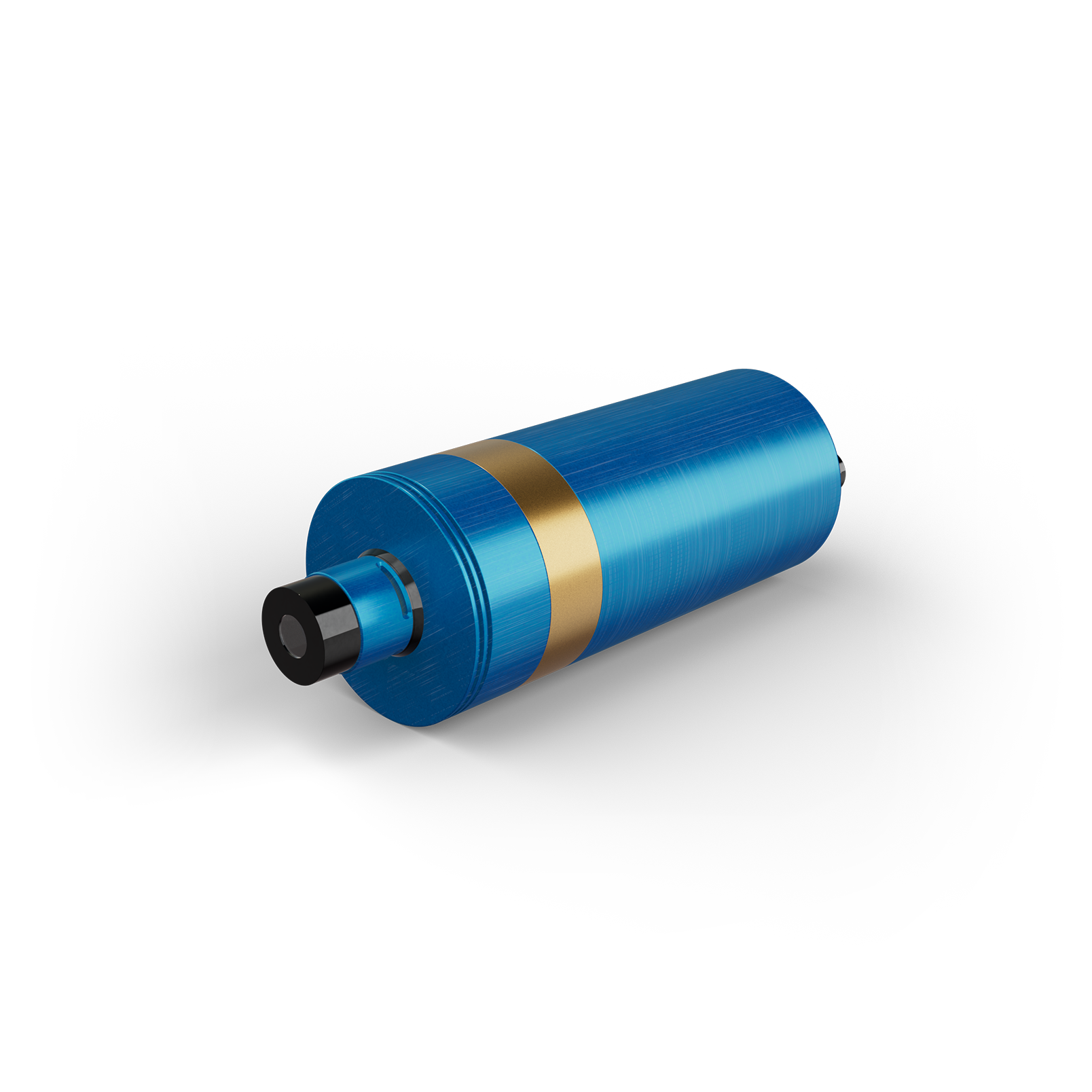

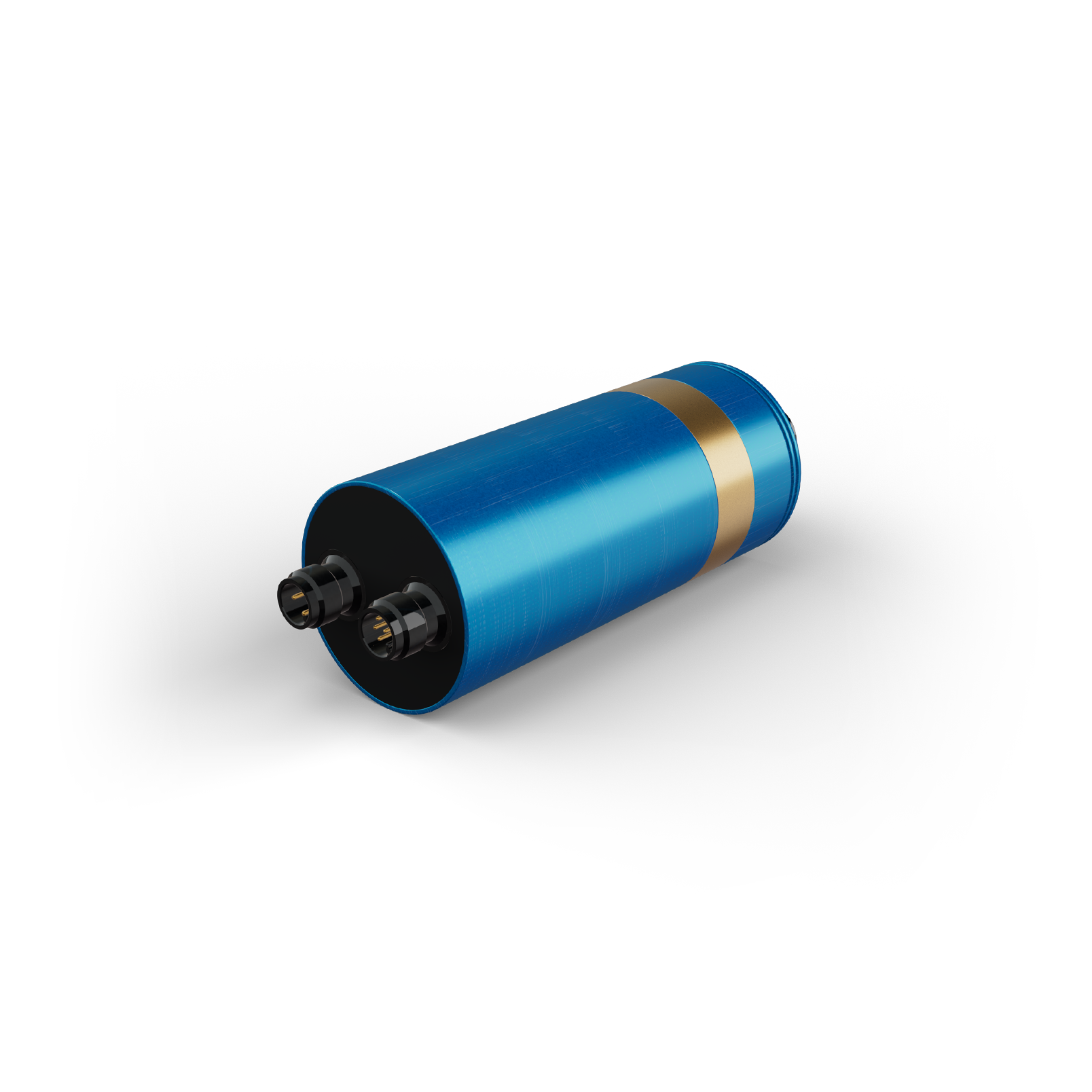

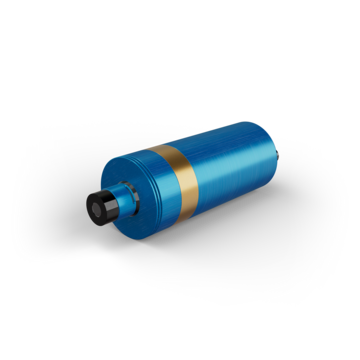

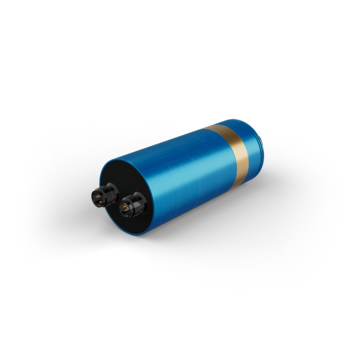

The compact FLEXPOINT® MVgoldHP laser module is available in wavelengths of 445, 525, 638, 660, and 808 nm and with various focus options to optimally adjust line thickness and depth of field. The in-house produced high-precision line optics ensure a sharp and uniform laser line.
Important areas of use
With its high light intensity, robustness, and precision, the FLEXPOINT® MVgoldHP module is ideal for demanding applications, such as the inspection of hot surfaces in the metalworking industry, as well as for rail and road maintenance.
Contact
Features
- Wavelengths: 445 nm, 525 nm, 638 nm, 660 nm, 808 nm
- Up to 2000 mW power at 445 mW, up to 1000 mW at other wavelengths
- Integrated thermoelectric cooling (TEC) for long-term stability
- Digital modulation (Active High / Active Low)
- Compact housing: Ø 48 mm, length 146 mm
- Customizable focus options for perfect line adjustment
FAQs
Beyond Borders
What variants and options does the FLEXPOINT® MVgoldHP module offer?
Five wavelengths with different output powers are available: 445 nm with 2000 mW output power, 638 - 808 nm with 1000 mW output power. The module also offers different focus options as well as active high and active low modulation and can be synchronized to the individual camera shutter speed.
Is the FLEXPOINT® MVgoldHP laser module suitable for 24/7 continuous operation?
Yes. Its robust housing without moving parts, with optimized heat dissipation and integrated cooling (TEC) allows for stable and un-interrupted operation even in the most demanding environments.
For which applications is the FLEXPOINT® MVgoldHP laser module particularly suitable?
It is particularly suitable for industrial inspections under extreme conditions, for example when inspecting steel or scanning hot materials or maintaining rails and roads.
