The PLUTO-2 phase modulator models are based on reflective LCOS microdisplays with 1920 x 1080 pixel resolution and 8.0 μm pixel pitch.

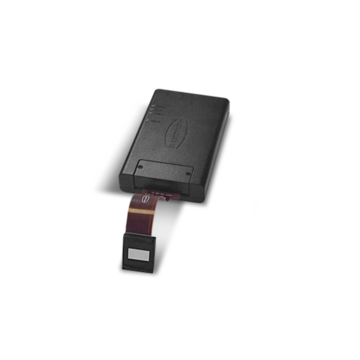

The PLUTO-2 series offers a broad wavelength range from 350 nm to 1700 nm. The PLUTO-2 is made with a driver unit with standard digital video interface (HDMI) and a phase only LCOS (Liquid Crystal on Silicon) microdisplay with full HD resolution.
The driver unit for the PLUTO-2 features a dual-core ARM Cortex-A9 processor with on-chip memory. This enables you to program additional functionality directly processed on the PLUTO-2 device. The dual-core system operates on an embedded Linux SMP operating system and includes a library allowing you to fully control the display and driver board.
Device | λ Range | Maximum Phase | Average Refl. |
---|---|---|---|
PLUTO-2-VIS-014 | 420-650 nm | 2.7 π @ 633 nm | 65% |
PLUTO-2-VIS-016 | 420-650 nm | 5.4 π @ 633 nm | 65% |
PLUTO-2-NIR-011 | 420-1100 nm | 2.0 π @ 1064 nm | 65-75% |
PLUTO-2-NIR-015 | 650-1100 nm | 3.7 π @ 1064 nm | 65-75% |
PLUTO-2-NIRO-023 | 1100-1400 nm | 4.1 π @ 1300 nm | 74% |
PLUTO-2-TELCO-013 | 1400-1700 nm | 3.5 π @ 1550 nm | 80% |
PLUTO-2-UV-099 | 350-420 nm | 2.3 π @ 405 nm | 90% |
PLUTO-2-VIS-098 | 450-650 nm | 2 π @ 650 nm | 93% |
PLUTO-2-NIR-080 | 730-950 nm | 4.8 π @ 800 nm | 95% |
PLUTO-2-NIR-049 | 1000-1100 nm | 2 π @ 1064 nm | 93% |
