Real-Time Monitoring with Distributed Acoustic Sensing
Distributed Acoustic Sensing (DAS) uses existing fiber optic cables as sensors for vibrations and acoustic events along the line. Viavi's powerful FTH-DAS uses these signals for continuous real-time monitoring of infrastructures such as pipelines, power grids, data centers and even entire sites. Events can be clearly visualized, classified and analysed via the AI-based alarm management interface (AMS).
Precise Fault Localization over Long Distances

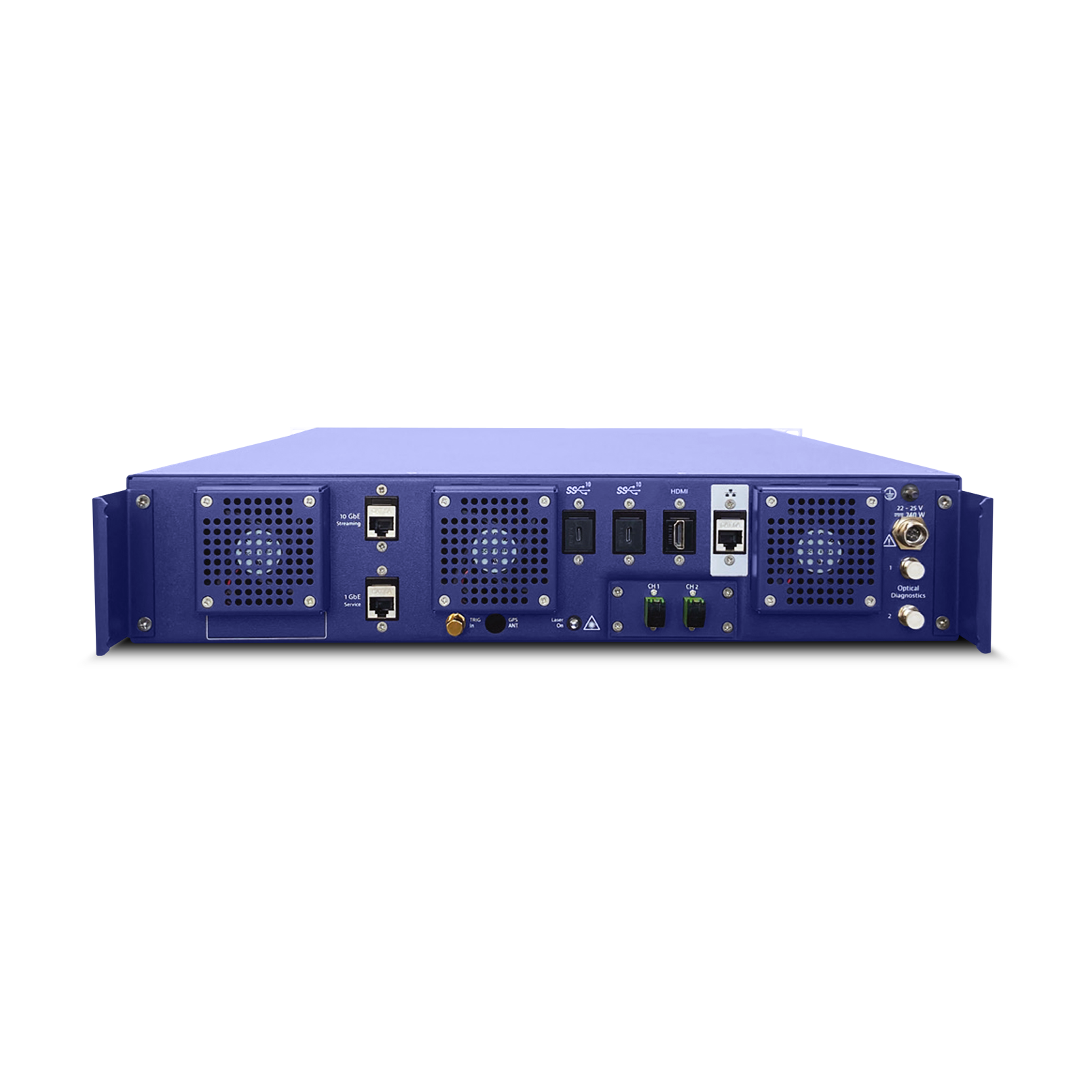

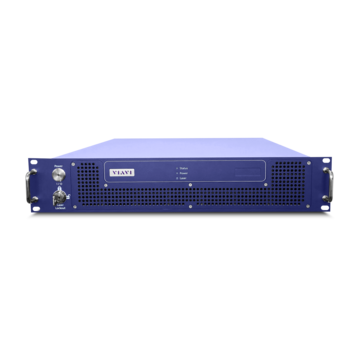

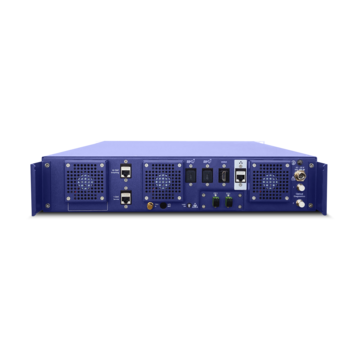

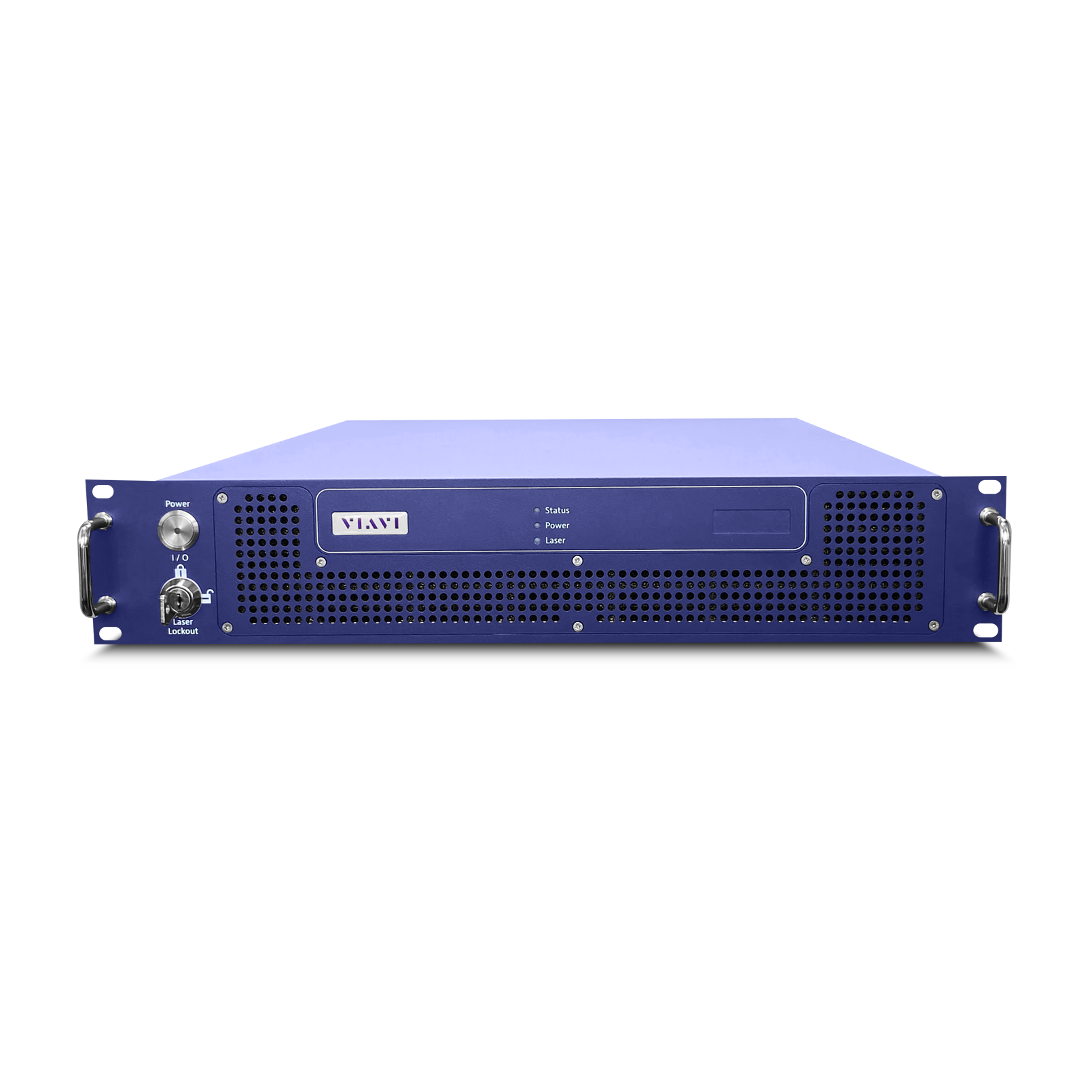

The compact FTH-DAS takes up just two height units in the rack. Even where space is limited, it can be easily integrated into any technology room or data center. With a sensor distance of 67 cm, interference can be localized over distances of up to 100 km with an accuracy of 33 cm. The lowest detectable frequency is 1 Hz. Depending on the cable length, the device supports frequency responses of up to 50 kHz. The device offers 1 TB of internal memory and can be integrated into existing systems via various interfaces (1 GbE, 10 GbE, HDMI, USB-C).
Markets & Applications
- Energy supply
- Pipelines (oil, gas, water)
- Security and perimeter protection
- Telecommunications and data centers
- Transportation and traffic
- Utilities and Smart Cities
Contact
Features
- Channels: 2 simultaneous measurement channels
- Fiber type: Singlemode (ITU G652, G657), compatible with G655, G656
- Maximum cable length per channel: 50 km (100 km total with dual channel)
- Minimum resolution: 0.33 m (user-selectable)
- Sampling interval: 0.67 m
- Minimum frequency: 1 Hz
- Maximum frequency (depending on cable length): 50 kHz @1 km; 1.0 kHz @50 km
- Internal memory: 1 TB (non-removable)
- Operating temperature: +5 °C to 40 °C
Benefits
- Real-time monitoring over long distances
- High spatial resolution
- Broad frequency spectrum for event detection
- AI-supported event analysis
