Specialized Measurement Devices

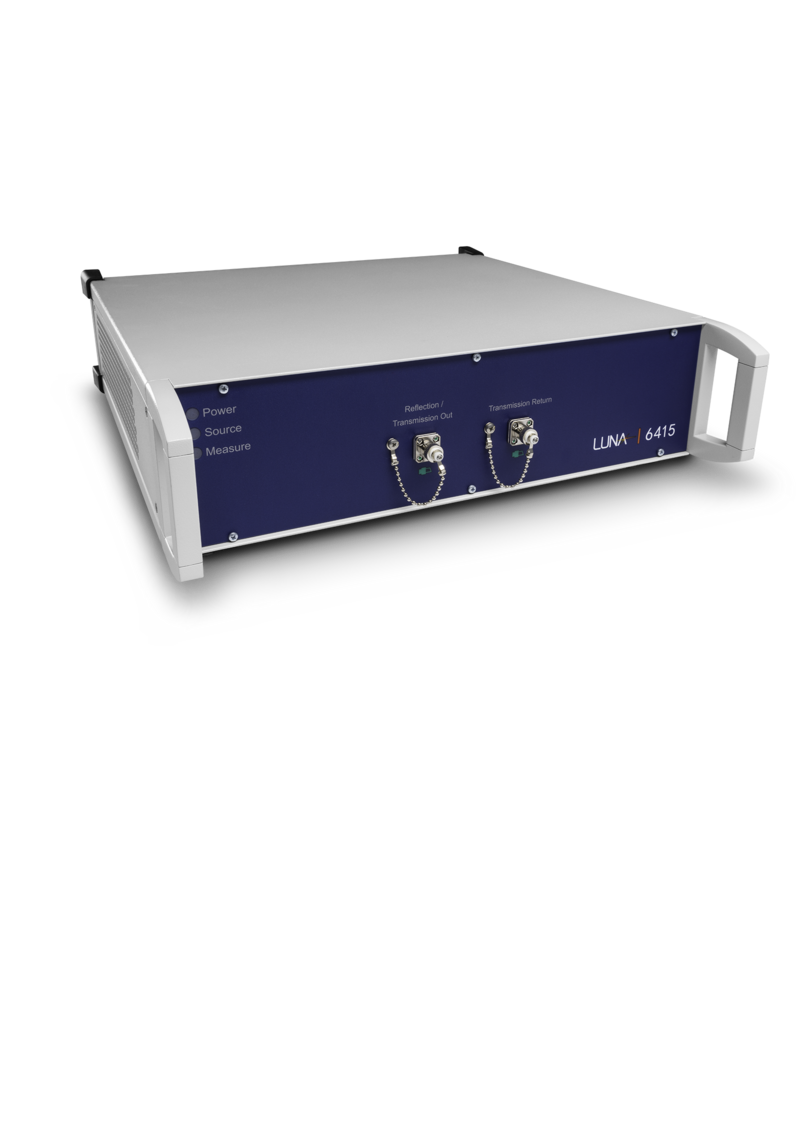

OFDR device for measuring insertion loss and reflection loss with a spatial resolution of 20 µm.
Modules, components, and measuring devices for the control and adjustment of the mode structure of multi-mode optical fibers for encircled flux or other mode conditions.
Characterization of the fiber geometry according to IEC-60793-1-20 Annex B via measurement is essential for the production of optical fibers, as well as their use in specialized applications.

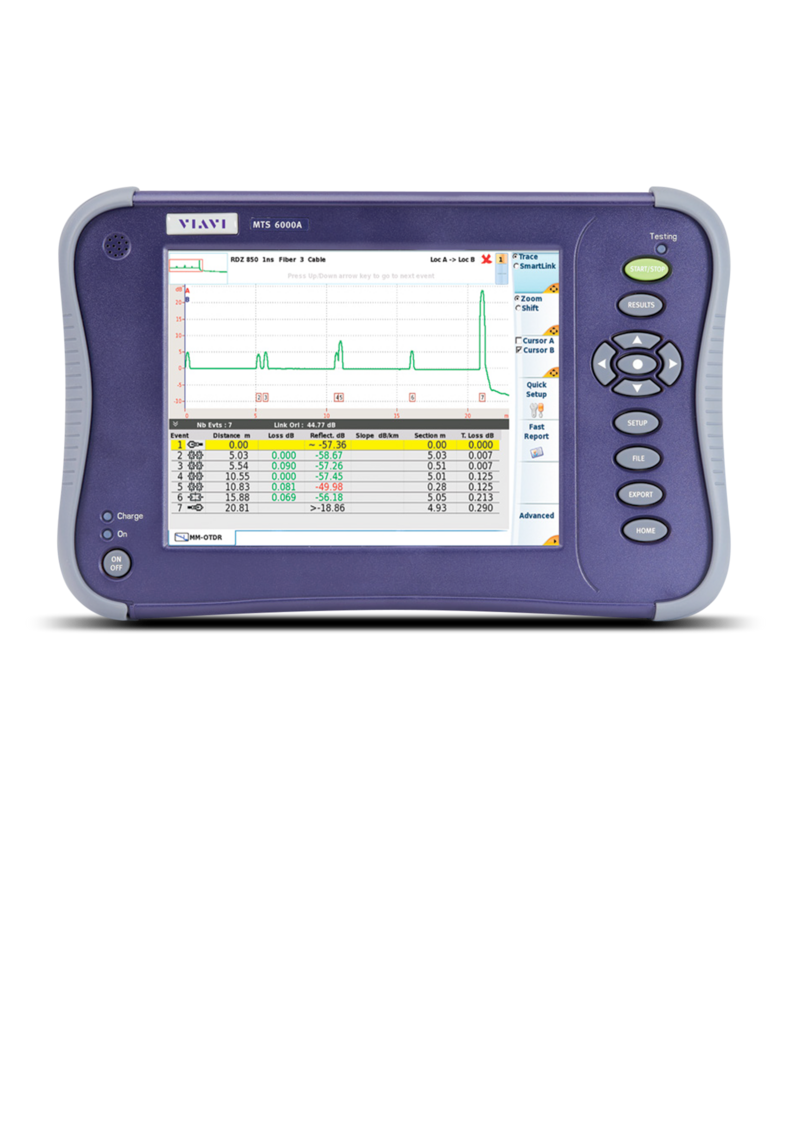

This high-resolution multi-mode OTDR aids in the measurement of short fibers and events at short distances (at wavelengths of 850 nm and 1300 nm).

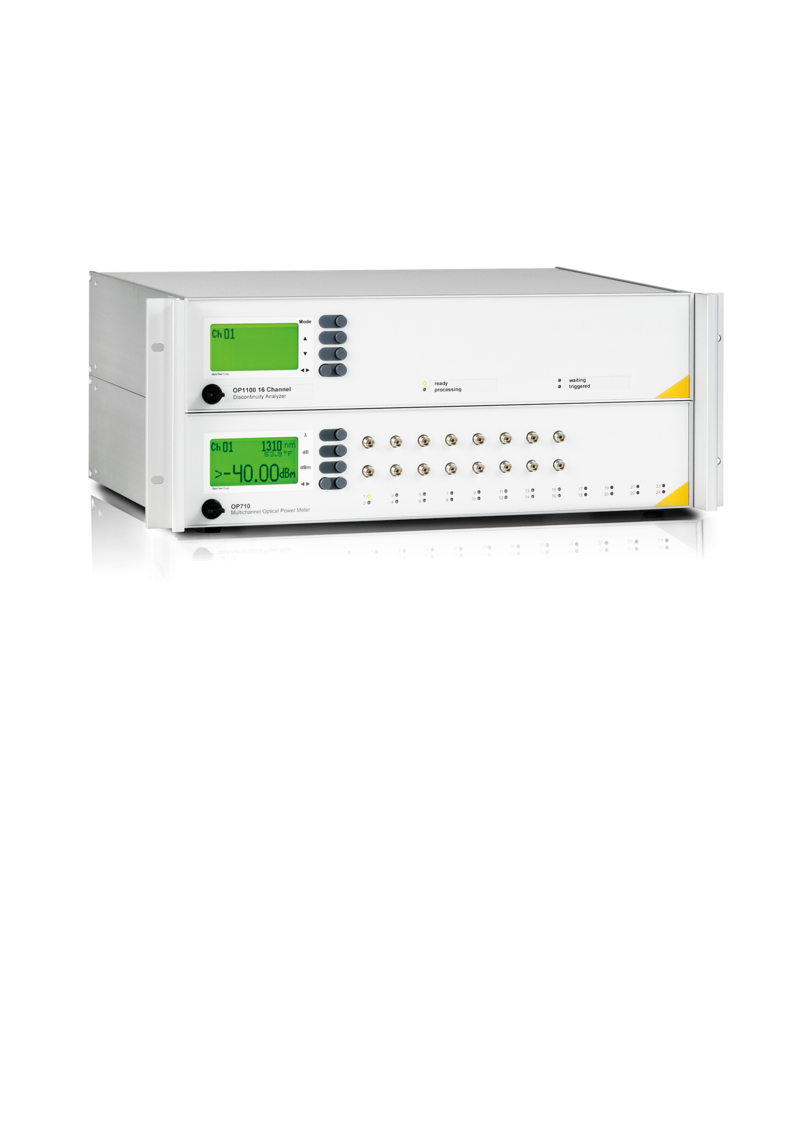

The OP1100 discontinuity analyzer is an autonomous fiber optic test system for detecting and recording fiber optic breaks.
Information
you should know
Text 70 Zeichen
The development, production, and qualification of optical fibers require many special measurements for which it is necessary to use specific measuring devices. In this category, we have compiled the best devices from renowned manufacturers:
- Optical frequency domain reflectometers (OFDR) provide you with high-resolution IL/RL measurements.
- A near and far field measuring station helps you to determine the correct coupling and decoupling conditions for fibers and connectors.
- A mode controller provides reproducible measurement results for the attenuation losses and bandwidths of multimode fibers.
- A fiber geometry measurement system ensures that your fibers comply with the industry standard.
- With a multi-channel fiber optic testing system, you can simultaneously perform long-term tests or climate chamber tests on up to 144 cables or components.
- A high-resolution multimode OTDR also detects fast successive events in short fiber lengths.
- A discontinuity analyzer detects and records fiber optic interruptions.
