OPM-200 High Performance Optical Power Meter

Flexible and precise high-speed optical power measurement.

OPM-200

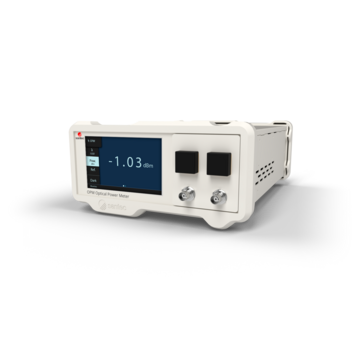

The Santec OPM-200 is a high-performance optical power meter offering precise measurements across a dynamic range from +8 dBm to -80 dBm. It supports configurations with up to four detectors and is available as panel-mounted units or remote heads with cables extending up to 10 meters, providing flexibility in various testing environments. The InGaAs detector option enables measurements across wavelengths ranging from 840 nm to 1700 nm, while an integrating sphere option is ideal for multifiber connectors or wide-area beam applications.

The OPM-200 features high-speed sampling at 1 MHz with user-selectable averaging times between 50 µs and 1 s, along with a buffered output capable of storing up to 128,000 data points. Additional features include external triggering for data capture and analog outputs, facilitating seamless integration into optical alignment or automated assembly line processes.

Applications:

  • Optical alignment
  • Transceiver testing
  • Laser and amplifier characterization
  • Transient testing
  • Lab and R&D

Benefits

  • High Speed: At 50 μs averaging time and 128,000 point data logging, the OPM-200 can capture transient behaviours and is suitable for high speed applications.
  • Flexibility: The remote-head option can be configured with up to 4 detectors. A threaded mounting hole to help attach it to your work bench.
  • Automated Measurements Made Easy: You can program the OPM-200 with simple SCPI commands using USB or Ethernet interfaces. Patented, interchangeable SD Slide Detector Adapters allow for further automation.

Features

  • Free-space 2 mm InGaAs detector
  • FC, SC, LC, MPO and more detector adapters are available
  • 840 to 1700 nm wavelength range
  • +30 to -80 dBm power range
  • 50 μs averaging time
  • USB or Ethernet
