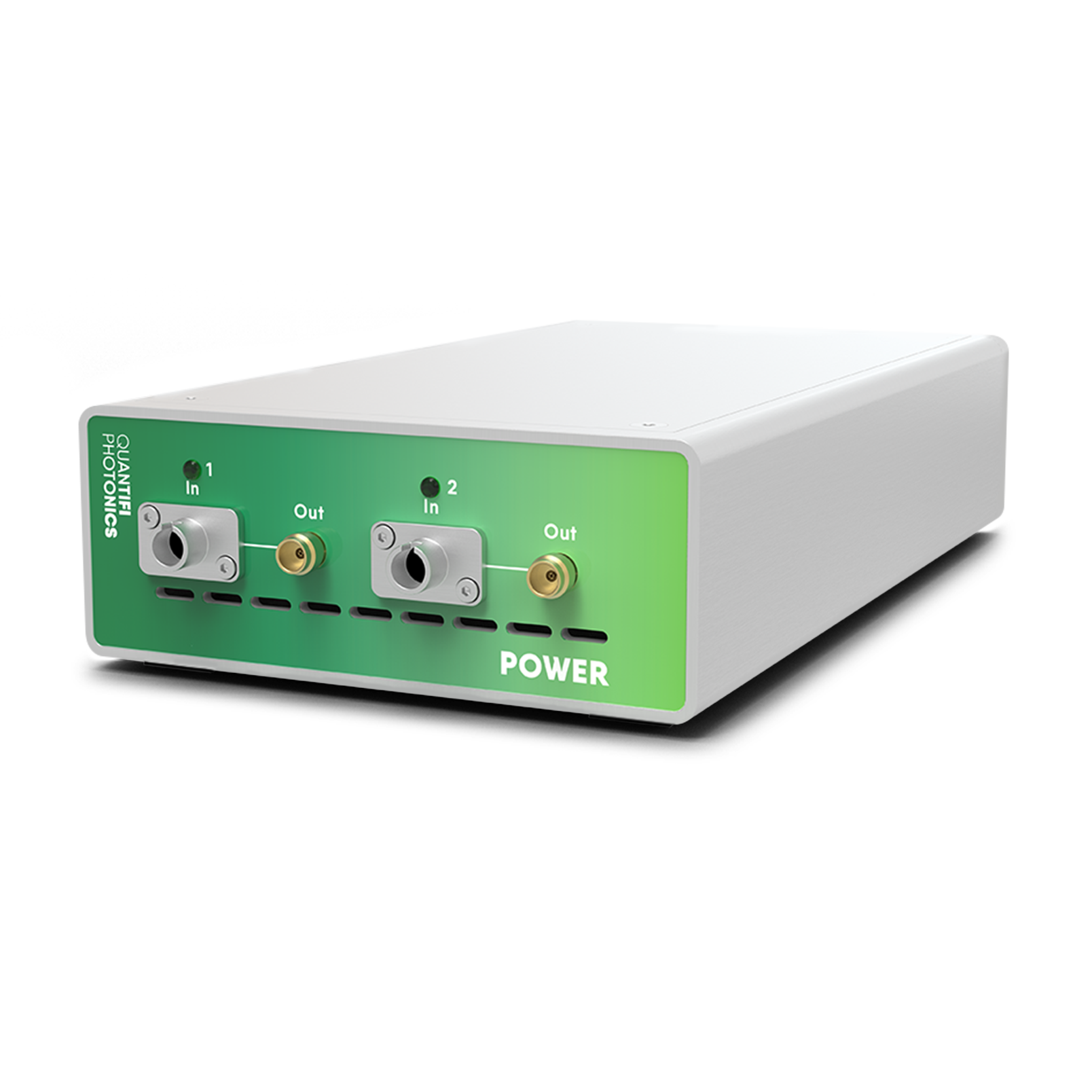

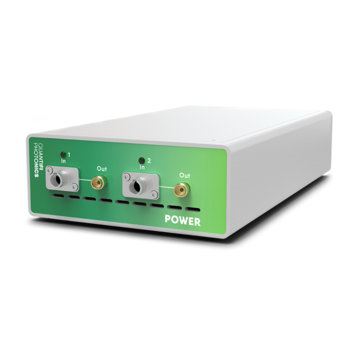

Power 1500 Series Analog Optical Powermeter

Real-time, precise optical power measurement and feedback.

Power 1500 Series

The MATRIQ Analog Optical Power Meter delivers precise and reliable optical power measurements for applications requiring real-time feedback. It features a single logarithmic amplifier that ensures consistent and accurate measurements across all power levels including detection of low-power signals. The device supports both single-mode and multi-mode fiber applications and thus provides seamless integration into diverse optical setups.

With its digital optical power readout, it is ideal for applications demanding real-time monitoring and feedback. At the same time, its analog output allows integration into hardware setups for rapid power feedback in the kilohertz range. The user-friendly CohesionUI interface enables operation from PCs or mobile devices. A large-format view mode enhances monitoring convenience, even when working away from the desk.

Applications:

  • Analog control loops that require feedback of the optical power
  • Automatic mechanical fiber positioning in production environments
  • Quick characterization of modulator transfer functions
  • Measurement of insertion loss versus wavelength

Benefits

  • High Measurement Accuracy – The single logarithmic amplifier ensures precise and consistent optical power readings without gain jumps.
  • Real-Time Feedback –Analog and digital outputs enable immediate monitoring and integration into high-speed control systems.
  • Versatile Fiber Compatibility – Supports both single-mode and multi-mode fibers for seamless integration into various optical setups.
  • User-Friendly Operation – The CohesionUI web-based interface allows intuitive remote control from PCs and mobile devices.

Features

  • Reliable at all power levels: Logarithmic amplifier eliminates the power jumps that can occur with linear amplifiers
  • Supports single-mode and multimode applications
  • Digital output of measured power level: ideal for applications requiring real-time feedback
  • Analog output can be integrated into the hardware setup for fast power feedback in the kHz range; logarithmic output makes it easy to detect low power signals
