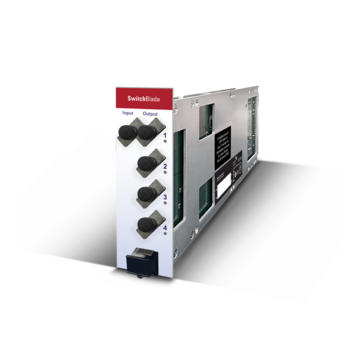

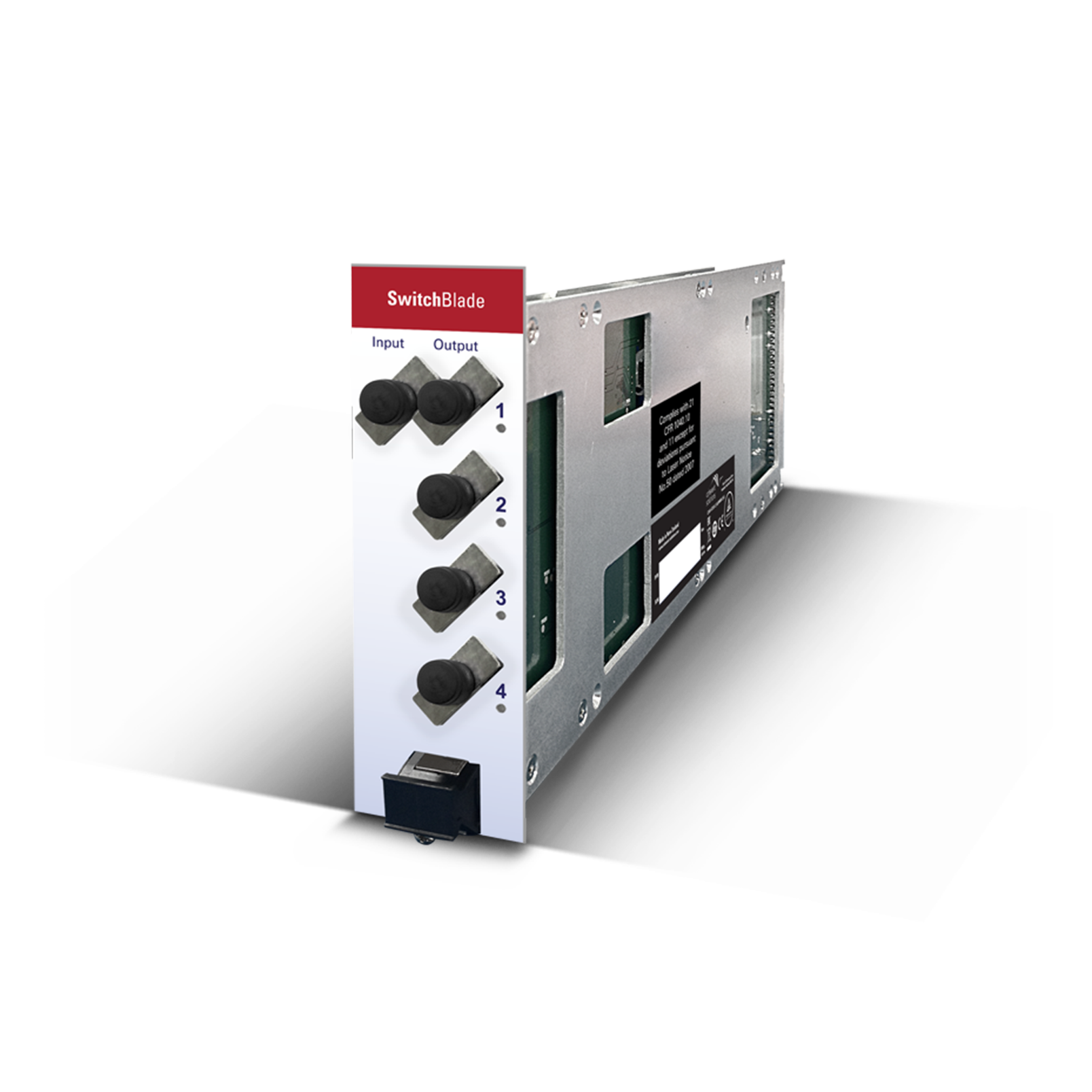

SwitchBlade – Modular Optical Switches

SwitchBlade modules, for example, for the automation of time-saving test processes via remote control in complete systems.

The MTP1000 series SwitchBlade module is a smart fiber optical switch that makes efficient test setups possible. Automated test procedures are also possible, as well as configurations in the area of development.

Main Features:

  • Modular test platform for optical fibers
  • Selection of 1x2 or 1x4 channel modules
  • Tested MEMS-based switches
  • Custom solutions and configurations upon request
  • Repetition accuracy of <0.02 dB
  • Low insertion loss, high performance
  • Supports the wavelengths 850 nm, 980 nm, and 1310 nm (others upon request)
  • Up to 36 channels per MTP1000 chassis
  • Remote controllable via an intuitive software environment
