Measuring Laser Power and Energy Accurately
Avoid Common Mistakes When Selecting Laser Measurement Technology
Have you thought of everything?
When selecting laser measurement technology, the same mistakes tend to occur again and again in real-world applications: sensors are chosen that are not well suited to the task, systems are oversized, or a single “one-size-fits-all” solution is expected to cover every requirement. In most cases, however, such a universal solution simply does not exist.
One thing is clear: the most expensive option is not necessarily the best one. Users who understand their requirements precisely can often reduce costs without compromising measurement quality. At the same time, experience shows that not every application can be covered by a single solution. That is why careful selection is essential—one that is technically appropriate, economically sound, and reliable in everyday use.
Our checklist guides you step by step through the most important selection criteria and helps you identify common pitfalls early on.
Here Is What You Should Keep in Mind
Before choosing a measurement solution, be sure to consider the following points:
- Measurement quantity: Power or energy?
Are you measuring average power or energy per pulse? This fundamental decision has a direct impact on the type of sensor you need. - Wavelength
In addition to laser power, wavelength is another key factor when selecting the right sensor technology. Not every sensor is suitable for every wavelength range. - Beam size and aperture
The beam diameter and detector area must be properly matched. If the beam is too small or too large, measurement results may be distorted—or the sensor may even be damaged. - Performance and Cooling
The required cooling method depends on the average power output. Inadequate cooling can lead to measurement errors and may even damage the measuring device. - Repetition Rate
Power meters require a minimum repetition rate to provide a stable measurement signal. Energy detectors, on the other hand, have a maximum repetition rate above which individual pulses can no longer be reliably detected. This is why energy detectors are available for different repetition-rate ranges. - Pulse Width
Depending on the pulse duration, the detector must respond quickly enough to reliably capture the energy input. Pulse width is therefore another important factor in determining which sensor type is suitable for your application. - Calibration and Accuracy
Only traceable calibration ensures reliable measurement results. For this reason, measuring instruments should be recalibrated regularly by an authorized calibration provider. - Integration, Interfaces, and Handling
How will the measuring device be integrated into your existing setup—or do you need a mobile solution? Aspects such as interfaces, cabling, and software are often underestimated, but they are essential for seamless integration.
What is your Application?

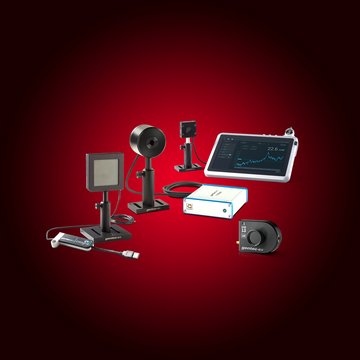

Our Products
mach 6 - Pulse energy measurement up to 200 kHz with the high speed digital joulemeter.
BLU - wireless laser power measurement from mW to kW
The BWA-MON beam analysis system allows for real time monitoring of all beam parameters in high-performance lasers.
Quantifying and qualifying with beam diagnosis
A calorimeter is the most reliable solution for determining the pulse energy of the largest and most powerful laser beams.
Unique line of sensors and meters for the terahertz region. Choose either a standalone device with on-board electronics or go with separate devices.
Measure, Track, Align - Follow your laser beam in each direction.
Pyrodetectors with a high damage threshold and high repetition rates
High-precision measurements at laser powers up to 1 kW.
The quick power meter is a handheld measurement unit that quickly and easily measure laser energy.
Gentec-EO's PRONTO: Handheld power meters for the fast and easy measurement of laser power.
The High Power HP series laser power meters are thermally stable detectors for laser powers up to 100 kW.
