FLEXPOINT® MV12 Laser Modules

Allround line lasers for Machine Vision

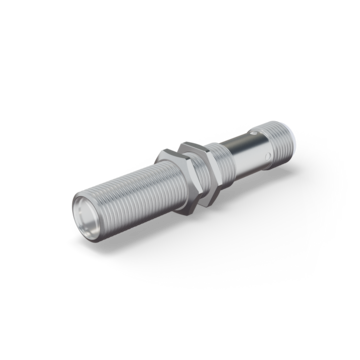

FLEXPOINT® MV12 laser module in M12 industrial housing

The FLEXPOINT® MV12 laser module is designed for industrial image processing applications and is particularly versatile.


Easy installation with M12 external thread

The stainless steel housing of the MV12 has an M12 external thread. This allows it to be quickly screwed into existing threads or holes in production equipment. An M12 connector provides the electrical connection as standard.


Powell lens from our own production

Thanks to the high-quality Powell lens, the MV12 laser module delivers a precise and consistently homogeneous line and, with its excellent line properties, is perfectly tailored to the requirements of industrial image processing, such as inspection or 3D triangulation.


Many wavelengths and beam angles

A wide range of wavelengths between 405 nm and 850 nm is available, as well as various beam angles from 5° to 90°. Thanks to variable focus, the ratio between line thickness and depth of field can be optimized individually for each application.

We are also happy to manufacture the module specifically according to your requirements. Just ask us!


Applications

  • 3D triangulation
  • Industrial inspection

Line Width Simulation
Calculate your optimal optical configuration:

Line Width Simulation

Features

  • Available wavelengths: 405, 450, 520, 635-640, 650-660, 685, 785, 850 nm
  • Excellent line quality
  • Fixed and variable focus available
  • 24 V modulation available
  • New focusing mechanism
  • High-precision Powell lens

Supplier

FAQs

For which applications is the FLEXPOINT® MV12 laser module suitable?

The MV12 laser module was specially developed for applications in industrial image processing. Typical areas of application are inspections, 3D triangulations, or other measurement and testing tasks that require a precise and homogeneous laser line.

How is the MV12 laser module mounted and connected?

The MV12 laser module has a robust stainless steel housing with an M12 external thread, which allows for easy mounting in existing threads or holes. The electrical connection is made via an M12 connector as standard.

What optical variants of the MV12 are available?

The FLEXPOINT® MV12 is available in various wavelengths from 405 nm to 850 nm and offers several opening angles between 5° and 90°. In addition, the focus can be variably adjusted to optimally adapt the ratio of line thickness to depth of field to the respective application.

Can the laser module MV12 be customized?

Yes, the MV12 laser module can be customized on request – for example, in terms of wavelength, power, or optical properties. Individual inquiries can be made for special requirements.

Line Width Simulation

Calculate line thickness and depth of focus of our MV lasers

Line width
simulation

With the line thickness simulator, you can calculate the line thicknesses and the depth of focus of our MV line lasers with different optical configurations and focal distances.

Wave Length / Power
Focus
Draw
