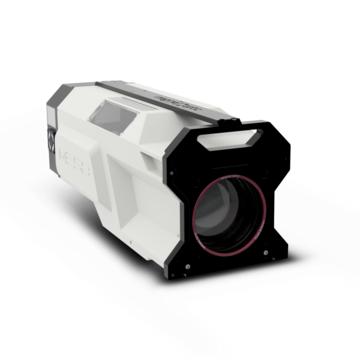

MESO Metrology System

Non-contact, 3D surface metrology with sub-micron precision.

This modular metrology system offers fast and highly accurate three-dimensional measurements for quality control and R&D in optics, semiconductors, and precision engineering.

Metrology System

The MESO Metrology System is a cutting-edge, non-contact optical profiler designed for fast and accurate 3D surface characterisation of reflective and transparent surfaces, as well as complex geometries. Leveraging advanced wavefront sensing and interferometry, MESO delivers topographic maps with sub-micron precision, enabling detailed analysis of surface roughness, form, and defects.



High-definition quality control

Its compact and vibration-insensitive design makes it ideal for both research laboratories and industrial environments, while its multi-wavelength capability adds versatility across applications. With automated measurement routines and user-friendly software, MESO ensures ease of operation while maintaining measurement repeatability and reliability. It is perfectly suited for R&D or quality control applications in precision manufacturing, optics, semiconductors, and microfabrication.

Benefits

  • Sub-Micron Precision: Reliable 3D surface measurements with sub-micron precision for a wide range of surface types.
  • Multi-Wavelength Capability: Measurements at various wavelengths, ideal for testing optical components across different operational conditions.
  • Vibration Insensitivity: Robust design for accurate, interference-free measurements even in environments with vibrations.

Features

  • Horizontal or vertical integration
  • Optical zoom from 1,5’’ (38,1mm) up to 6’’ (152mm)
  • Testing wavelength from 405 nm to 820 nm
  • 680 x 500 phase points resolution
  • 27 µs minimum acquisition time
