CWDM Laser Diodes

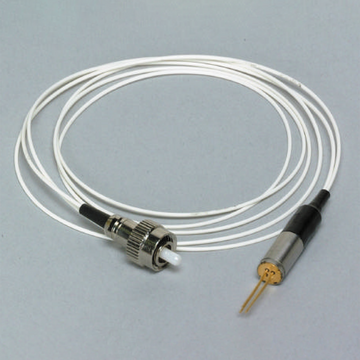

Fiber-coupled CWDM laser diodes from 1470 nm - 1610 nm

Quick selection! Click here to find the laser diode you need and check its data sheet.

Laser Diode Selector

PD-LD’s DFB laser diodes are offered with central wavelengths of 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm.

They are InGaAsP cw laser diodes with output powers ranging from 0.1 mW to 2 mW of a 9/125-µm single mode fiber. The fiber end is either open or terminated with an optical connector (FC, ST, SC, LC – PC or APC polishing can also be done).

Rise and fall times are 0.2 ns and transfer rates of up to 3.125 GB/s can be achieved. If necessary, they can be equipped with an optical isolator. The operating temperature ranges from -40 to +85 °C. A photodiode is built in to monitor the output power.


This DFB laser can be supplied with different connectors as well as two common pin configurations, which is well suited for existing PCB layouts.


They are used in optical transceivers, cable TV, test and measurement systems, and metro and access networks.


Find the right laser diode and the respective data sheet in just a few clicks.

Laser Diode Selector


Quick Navigation

Laser Diode Selector

Find the right laser diode with just a few clicks

What suits your requirements?

Find the right laser diode with just a few clicks. Just select your specifications in the search mask and you get an instant overview of all the laser diodes that meet your requirements. This way you don’t have to tediously search through our extensive standard product range.
Did the search engine throw up several results or did it actually happen that we don't have a laser diode in our range to meet your requirements? No problem! Get in touch with your contact person. We will be happy to help you with your selection or work with you to develop a new laser diode that best suits your application.

Wavelength [nm]

Your Laser Diode
Search Results

698 Emitters

Quantity requested
SMD Package
Download datasheet Wave­length255nm Power9mW PackageSMD Tempera­ture60°C
SMD Package
Download datasheet Wave­length255nm Power13.5mW PackageSMD Tempera­ture60°C
Chip Package
Download datasheet Wave­length255nm Power15mW PackageChip Tempera­ture60°C
SMD Package
Download datasheet Wave­length255nm Power22.5mW PackageSMD Tempera­ture60°C
Chip Package
Download datasheet Wave­length255nm Power25mW PackageChip Tempera­ture60°C
SMD Package
Download datasheet Wave­length255nm Power45mW PackageSMD Tempera­ture60°C
Chip Package
Download datasheet Wave­length255nm Power45mW PackageChip Tempera­ture60°C
SMD Package
Download datasheet Wave­length255nm Power65mW PackageSMD Tempera­ture60°C
SMD Package
Download datasheet Wave­length265nm Power18mW PackageSMD Tempera­ture60°C
Chip Package
Download datasheet Wave­length265nm Power22mW PackageChip Tempera­ture60°C
