Laser process heads provide a method to focus the laser beam onto the workpiece. Transmissive optic designs are most commonly used, while reflective optic designs are used in high-power applications. Gas jets are also incorporeted into this design to assist in the laser process and protect the optics.

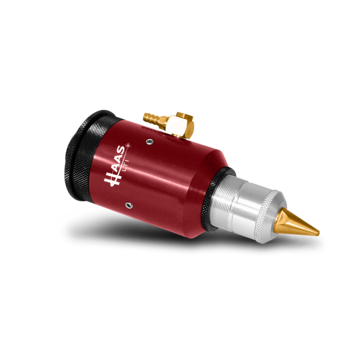

Laser Process Heads provide a protective housing for the focus length. Each process head is equipped with a nozzle tip standoff adjustment and X-Y focus lens adjustment.

• Standard focal length
• Standard & custom mounting available
• Gas jet manifold
• Anodized aluminum construction

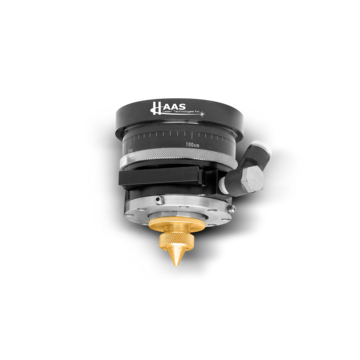

This head is designed for fine cutting and welding applications. The unit accepts a wide variety of both cutting and welding optics. The modular desgin permits custom configurations for specific applications.

• Fine cut laser head assembly
• Focus adjustment of ± 4 mm at a resolution of 10 µm
• Monocular/CCD Viewing Options
• Including cartridge for protective window
