Laser Optics for the Interior Coating of Tubes

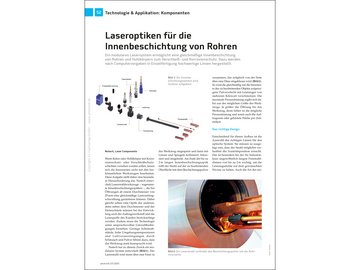

Preview of an article for Laser optics for the internal coating of pipes

A modular laser system enables
uniform internal coating of pipes

Author: Nutech, LASER COMPONENTS
Published: photonik 02-03/2020

Coating the inner surfaces of tubes and hollow components places exceptional demands on optical design and manufacturing quality. This article explains how modular laser optics enable uniform, high‑power internal coatings for wear and corrosion protection, even under harsh industrial conditions.

This article shows you:

Why internal tube coating poses unique optical challenges
How modular internal coating optics enable high process performance
The importance of lens design, precision polishing and optical coatings
How customized design and manufacturing ensure consistent coating quality

Download PDF (German version only)
