The smallest machine vision laser available on the market
LASER COMPONENTS’ MVfemto series modules are the smallest line lasers available for industrial image processing. However, they are characterized by extraordinarily high optical power. With a length of 40 mm and a diameter of 8 mm, these modules fit into 3D laser sensors that do not really offer much space.
The focus of MVfemto modules is set during factory production. In addition to the standard version, modules are also available with separate optical and electronic elements, as well as a version without driver electronics.
Changes can be made at any time upon request. Contact us!
Applications
- 3D machine vision
- Integration in 3D scanners for wood and food inspection
- Inspection of weld seams
- Inspection of adhesive beads
- Industrial inspection
- Structured lighting
Contact
Features
- 8 mm diameter, 40 mm length
- Uniform power distribution along the line
- Superior line quality at various wavelengths
- Individual match of line thickness and depth of focus (DOF)
- Three housing options
- Digital/analog modulation (optional)
Supplier
FAQs
Beyond Borders
What advantage does the particularly compact design of the FLEXPOINT® MVfemto offer in industrial image processing?
With its very small dimensions of 40 mm in length and 8 mm in diameter, the MVfemto from LASER COMPONENTS is particularly suitable for applications with limited installation space, e.g., in small 3D sensors. Its low weight also makes it ideal for equipping robots, e.g., in material or quality testing.
At which wavelengths can the FLEXPOINT® MVfemto be used?
The FLEXPOINT® MVfemto delivers consistent line quality at these wavelengths: 405/450/520/635/660/785/830 nm.
Why is the FLEXPOINT® MVfemto available with different focus options?
The MVfemto is supplied with a fixed focus set according to customer requirements in order to achieve the desired combination of line thickness and depth of field for the respective customer application with the highest quality.
What housing options does the FLEXPOINT® MVfemto offer?

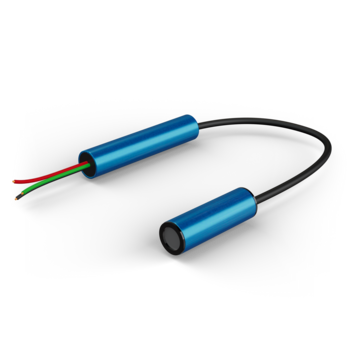

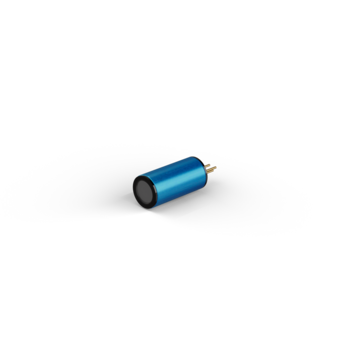

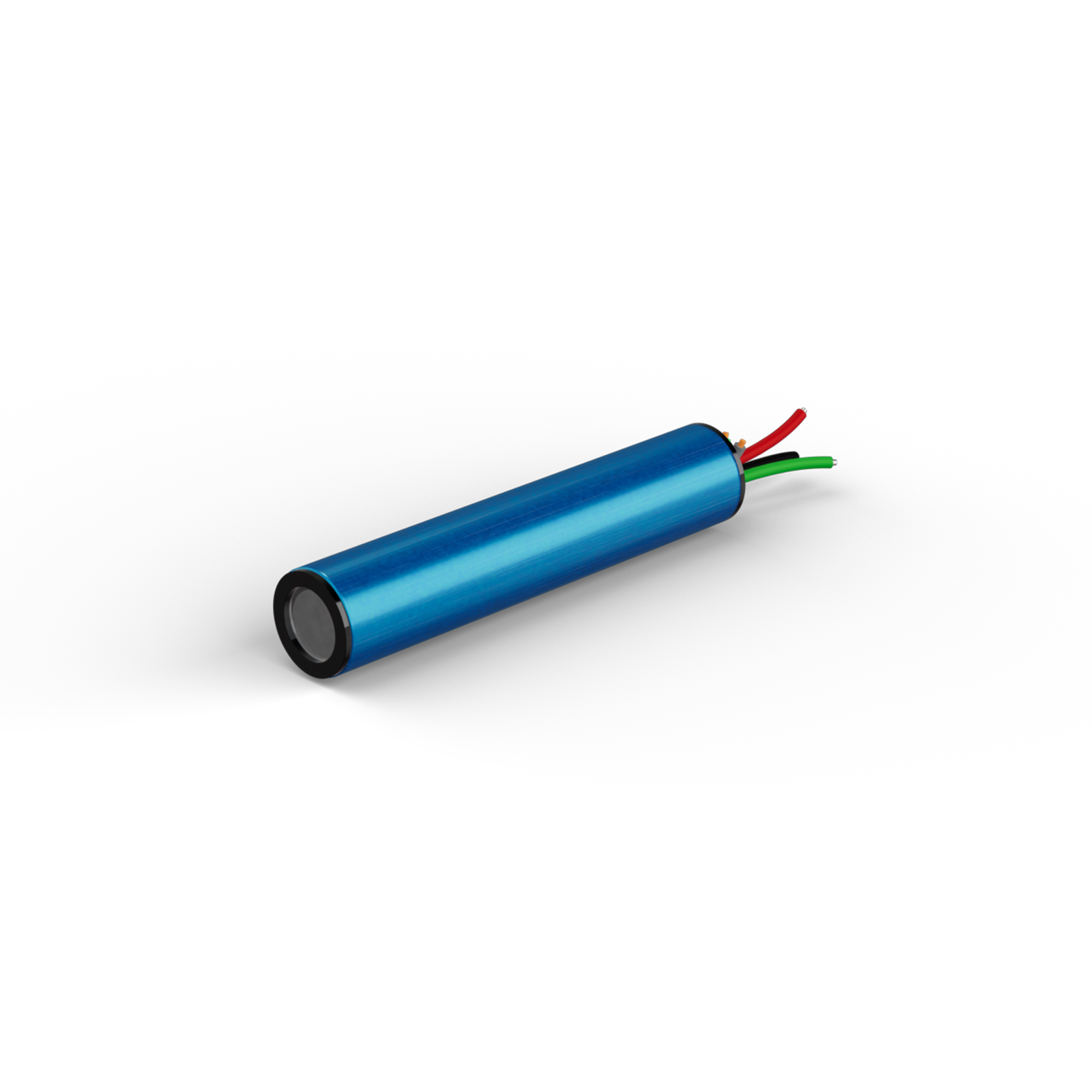

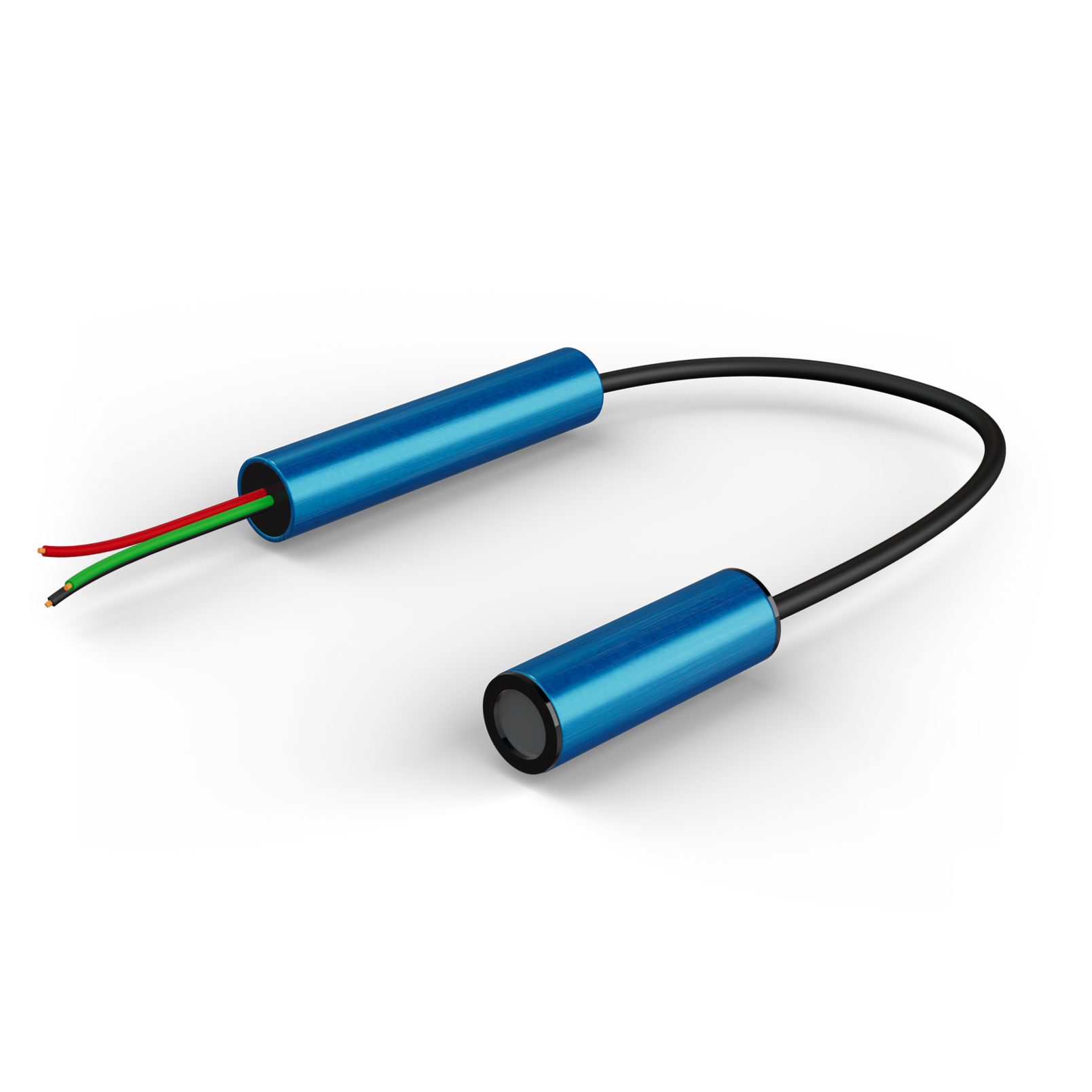

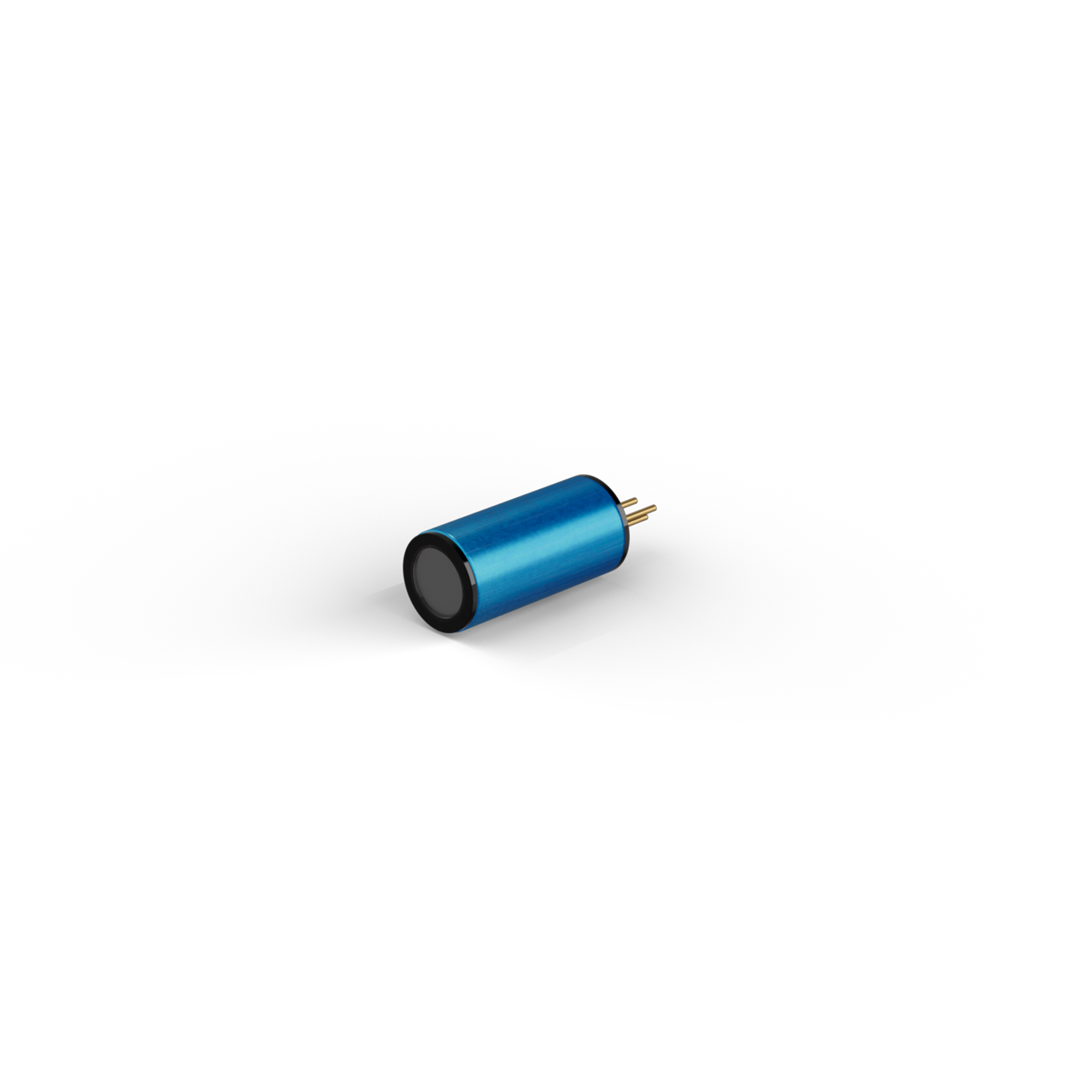

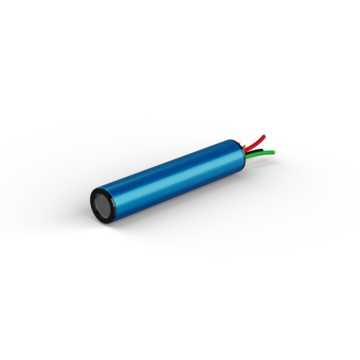

The FLEXPOINT® MVfemto is produced in three housing options: as a standard housing with integrated electronics, as an optical head with separate electronics, and as an optical head without electronics if these are already available on the customer's side.
Line Width Simulation
Line width
simulation
With the line thickness simulator, you can calculate the line thicknesses and the depth of focus of our MV line lasers with different optical configurations and focal distances.
Proceed as follows:
