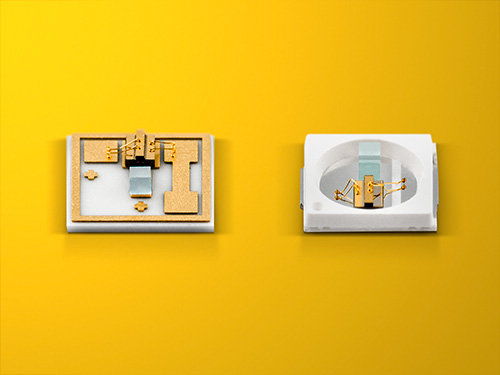

For the NIR wavelength of 940 nm, Arima has started, for the first time, offering two laser diodes in SMD housings. The ADL-94Y01IY-F1 and 94Y01EY-F2 versions both differ in their housing design. With a footprint of 3 mm x 3 mm (IY-F1) and 3.5 mm x 3.5 mm (EY-F2) and a height of just 0.75 mm, they deliver 200 mW of optical power.
At temperatures of up to 50°C, they feature consistently high performance. The laser diodes are primarily designed for distance measurement, 3D sensor applications, and pumping fiber lasers.
