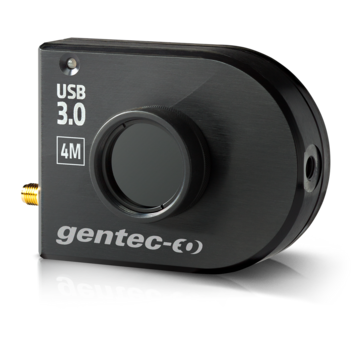

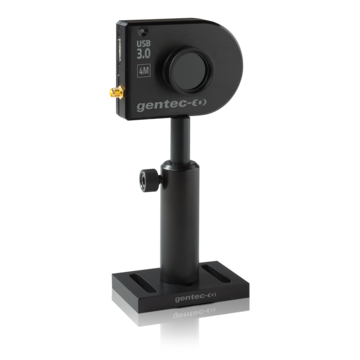

Beamage Series
The Beamage series stands for large-sized, camera-based beam diagnostics with a simultaneously high pixel density and fast data transmission. The CMOS-based cameras are available with completely new software.
Advantages:
Beams starting at approx. 50 µm can be measured using these cameras. Thanks to a comprehensive range of options, there are almost no restrictions for larger diameters.
The easy-to-use user interface is intuitive and offers many functions.
Specifications:
- Fast transmission rates through USB 3.0
- High resolution with 2.2 or 4.2 megapixels
- Large sensor element (11.3 mm x 6 mm or 11.3 mm x 11.3 mm)
Special Features:
- 2-D, 3-D, and X-Y displays
- Background subtraction function
- Unique “animation” function
- Gaussian fitting
- Semi-logarithmic curve
- External trigger for synchronization of the camera with a pulsed laser
