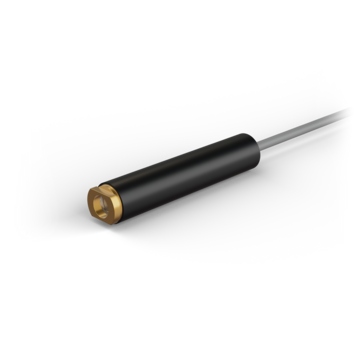

FLEXPOINT^® Dot Laser Modules

LASER COMPONENTS offers standard and custom dot laser modules with circular or elliptical beam profiles ranging from 405 nm to 905 nm. They are available with output powers ranging from a few microwatts up to 100 mW and in various housing configurations (fixed or adjustable focus).

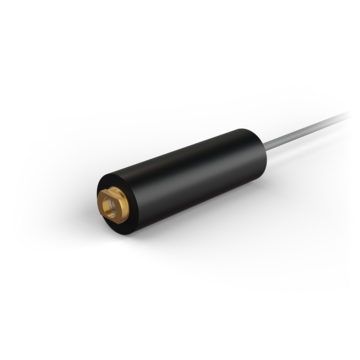

Optionally, all FLEXPOINT^® spot laser modules can be modulated or equipped with external power control. The supply voltage is typically 4.5–6 VDC or 4.5–30 VDC (405–520 nm). The standard housings measure 57 mm x 11.5 mm or 63 mm x 19 mm (ruggedized); custom housings can also be manufactured.

The FLEXPOINT^® T85 series is designed with a circular beam at 660 nm (red) for higher operating temperatures up to +85 °C (instead of the standard +50 °C).

Highest quality dot laser modules—recognized worldwide

Precise positioning and measurement systems require a high-quality laser source. The FLEXPOINT^® series laser modules meet the highest quality standards of customers worldwide. We also manufacture laser modules classified into specific laser classes (e.g., class 1, 2, or 3R).

All FLEXPOINT^® laser modules are “Made in Germany” and can be customized to meet your requirements beyond the options listed in the data sheet. Ask our experts!

Applications

We supply customers in the fields of medicine, biophotonics, the manufacturing industry, laser systems, and safety technology. Spot laser modules are frequently used as pilot lasers in high-power laser systems. They are found, for example, in medicine for guiding surgical procedures, as well as in measurement tasks such as light scattering, position sensors, fluorescence, and spectroscopic applications.
