Laser Modules for Industrial Image Processing

Laser Modules for Industrial Image Processing

Quality management and quality control are becoming the focus of production processes and each manufactured product must undergo a (final) check. Here, industrial image processing becomes an increasingly popular tool which guarantees manufacturing without interruption or physical contact and high reliability. The light-cutting process is a key technique for measuring profiles, height differences and geometries. The technique is based on the principle of laser triangulation. A complete measuring system consists of a lighting source, a camera, and evaluation software. LASER COMPONENTS specializes in the production of the lighting source, in this case the line laser, under the brand name FLEXPOINT®

Basics

Beyond Borders

/ Resolution

The quality of the projected laser line has a great influence on the resolution of the entire measuring system. The finer the laser line can be focused at a given working distance, the smaller the structures that can be measured. The physics and the quality of the optics used set the natural limits. Line widths in the range of 20 μm or smaller are possible. The length of the line is defined by the fan angle of the lens. Line optics with fan angles of 5 ° - 90 ° are available.

/ Depth of Field

Another important option is the depth of field. This is the range in which the line width has increased by the factor √2. Line width and depth are inversely related: the finer the line, the smaller the depth of field. You can find a graphic of the possible line widths and related depths of field in the data sheets for FLEXPOINT® MV lasers on our website.

/ Perfect Line

In addition to the line width, the straightness of the line also plays an  important role. With lines that show a banana or S-shape, a correct measurement cannot be carried out. Each of our laser systems is therefore subjected to intensive testing before delivery.

Samuel Thienel
For direct contact to a specialist
Click here

Quality Features

Beyond Borders

All FLEXPOINT® laser modules are designed for professional industrial applications and have polarity reversal protection and protection against overvoltage and voltage spikes to eliminate the risks of incorrect handling. For the simple integration into the customer system, the lasers have a potential-free housing and are available with various voltage ranges.

Pattern Generators Pattern Generators

/ Laser Speckle

An obstacle to effective laser-based measuring systems is laser speckle - an interference phenomenon caused by the coherent properties of the laser. These patterns can deteriorate the edge sharpness and homogeneity of the line mainly in the transverse direction. Speckles cannot be completely avoided, but LASER COMPONENTS offers line generators with super luminescence diodes, which have a broader emission spectrum and thus gene-rate less speckle.



/ Pattern Generators

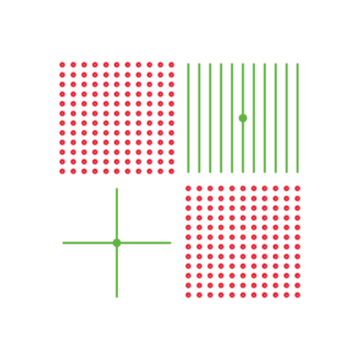

For certain measurement tasks, the projection of a single line is not sufficient. Rather, crosses, lattices and multiple lines, circles or point matrices are needed. These patterns are simply produced by diffractive optical elements (DOEs), which are mass produced by copying a master optics. The DOEs can either be integrated into a FLEXPOINT® laser module or plugged into a plastic cap, which can be easily removed from the laser.

Modulation and Power Adjustment

Beyond Borders

FLEXPOINT MV Series FLEXPOINT MV Series

For optimum measurement, the laser should be synchronized with the camera; That is, the laser is turned on exactly when the camera takes an image. With the FLEXPOINT®, this can be realized via the optional input modulation. The maximum modulation frequency is 1 MHz. Different dark and light objects require more or less laser power. By means of a control wire, this can be externally controlled or fixed. Adjusting the power setting via a potentiometer is also possible.

Your Laser Specialist

Beyond Borders

LASER COMPONENTS manufactures a variety of laser modules for image processing and is, therefore, the right contact for developers in the image processing industry. In addition to standard products, customer-specific lasers are also manufactured in small batches. With more than 20 years of experience in the field of laser modules, LASER COMPONENTS is an absolute specialist in this field.

Let's get in touch!
Samuel Thienel
Technical Sales Engineer
Samuel Thienel
LASER COMPONENTS (UK) Ltd.
CM2 7PR Chelmsford Essex

Download

Beyond Borders

Products

Beyond Borders

FLEXPOINT<sup>&reg;</sup> Laser Diode Module MVpulse 2H FLEXPOINT<sup>&reg;</sup> Laser Diode Module MVpulse 2H
FLEXPOINT® MVpulse Laser Modules

Powerful pulses at safety class 1, 2 or 3R – This module combines laser power with safety.

MVpulseHP Series with Pulse Control Option (PCO) MVpulseHP Series with Pulse Control Option (PCO)
FLEXPOINT® MVpulseHP Laser Modules

Pulsed High-power Laser Module for Accelerated Inspection and Outdoor Applications

The FLEXPOINT® MVpulseHP laser module delivers up to 1000 mW of power in a compact design without active cooling. Its luminosity makes it perfect for precise outdoor inspections such as road and rail inspections. The pulse lengths can be individually adapted to your application to guarantee optimum efficiency and accuracy during image processing.
FLEXPOINT<sup>®</sup> Machine Vision Lasers - MV12 Series FLEXPOINT<sup>®</sup> Machine Vision Lasers - MV12 Series
FLEXPOINT® MV12

Machine vision line lasers with integrated M12 thread: these are the FLEXPOINT® MV12 lasers.

FLEXPOINT MV18 Series (Edition 2025 with improved mechanics) FLEXPOINT MV18 Series (Edition 2025 with improved mechanics)
FLEXPOINT® MV18 Laser Modules

Robust and versatile module with integrated M18 thread.

FLEXPOINT<sup>&reg;</sup> Laser Diode Module MVfemto FLEXPOINT<sup>&reg;</sup> Laser Diode Module MVfemto
FLEXPOINT® MVfemto

Shorter than a match – the smallest line laser for industrial image processing.

FLEXPOINT MVmicro FLEXPOINT MVmicro
FLEXPOINT® MVmicro

The robust module for stand-alone applications in 19 mm housing and with M12 connector.

MVnano Series (Edition 2025 with improved focus mechanics) MVnano Series (Edition 2025 with improved focus mechanics)
FLEXPOINT® MVnano Laser Modules

The Allrounder - For integration in 3D sensors or as a stand-alone solution.

MVpico Series 2H-F (Edition 2025 with improved focus mechanics) MVpico Series 2H-F (Edition 2025 with improved focus mechanics)
FLEXPOINT® MVpico Laser Modules

Small machine vision laser modules for integration into 3D sensors.

Machine Vision Line Laser MVsquare Machine Vision Line Laser MVsquare
FLEXPOINT® MVsquare

The square solution for fast and easy assembly in series production.

FP-MVstereo-660-70-335-F FP-MVstereo-660-70-335-F
FLEXPOINT® MVstereo

Random pattern projector with >33,000 dots for 3-D stereo image processing.

Ring Laser Ensures Robust Pipes Ring Laser Ensures Robust Pipes
FLEXPOINT® Radial

Homogeneous line all around - robust ring laser module without moving parts.
