LaserBlade Laser Modules

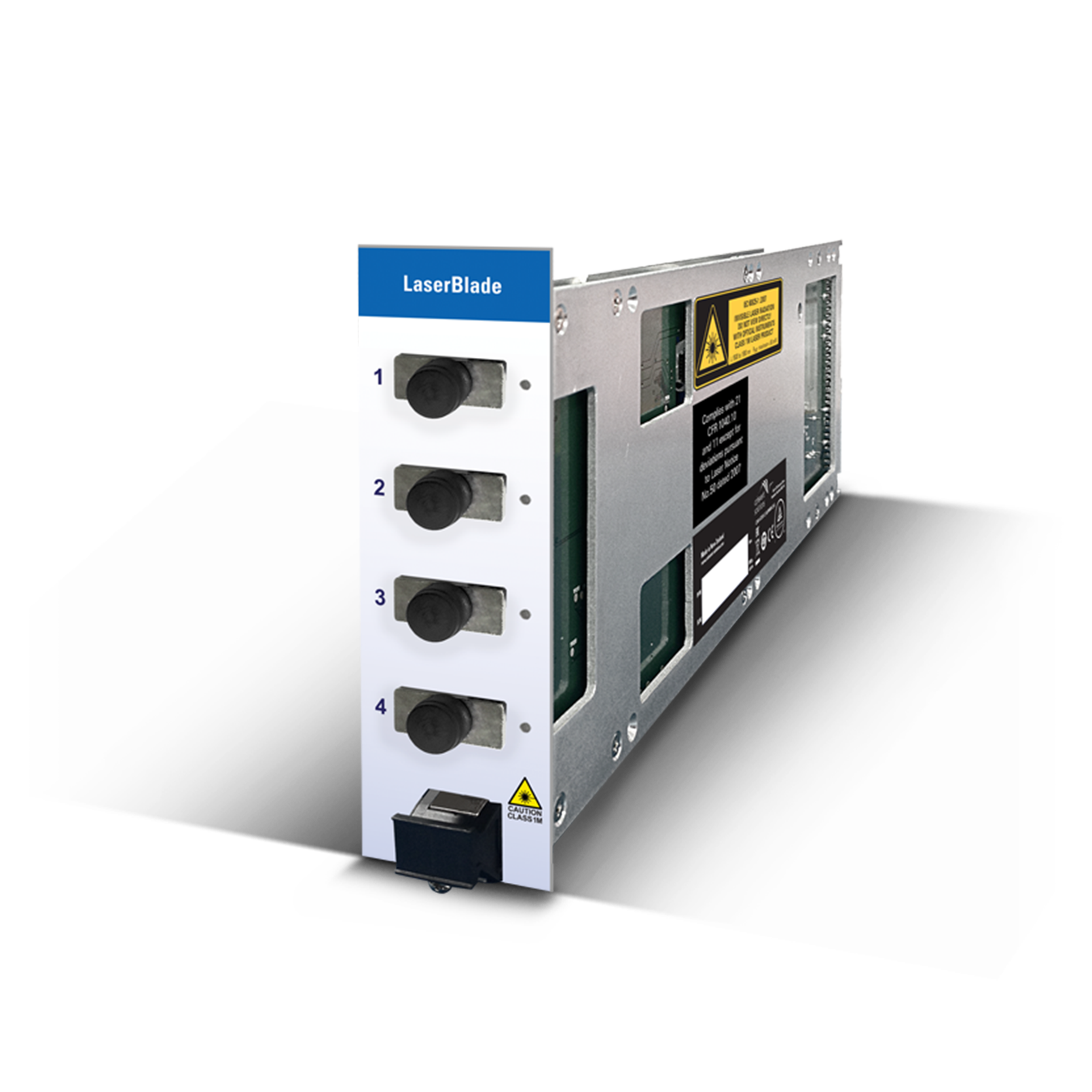

LaserBlade-ITLA

Together with the LaserBlade modules, MTP platforms offer an extraordinary scalability. Each MTP1000 module rack has the capacity for nine modules with a selection of two or four laser sources (C band and/or L band). Therefore, with each mainframe, up to thirty-six lasers can be individually controlled or synchronized with the intuitive software environment.

Main Features:

• Two or four lasers per module
• Fully tunable via C band and/or L band (ITLA)
• Simple calibration
• Resolution: 0.01 pm
• Narrow line width of 100 kHz, output power of up to 15 dBm
• Remote control via PC (Ethernet or USB)
• Intuitive and easy-to-use software

Application Fields:

• Stable local oscillators for Coherent receivers
• WDM network loading
• General application as a stable light source for telecommunication and physical applications
• Amplifier testing
• With a polarization-maintaining output, it is ideally suited for experiments and tests which require precise control of the polarization condition

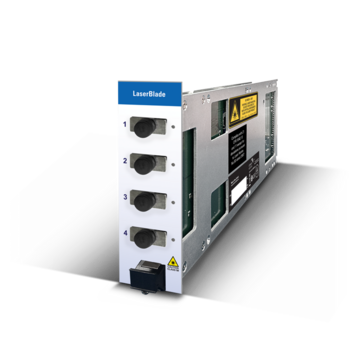

LaserBlade-DFB

Together with the LaserBlade modules and DFB lasers, MTP platforms offer a wide range of wavelengths and output power levels. Please provide us with the specifications for your measurement system!

The MTP1000 mainframe may include one, two, or four lasers per module.

Main Features:

• Modular test platform with custom modules
• One, two, or four lasers per module possible
• Custom selection/definition of wavelength and power
• Large selection of power and wavelengths
• Compatible with all MTP modules, such as VOABlade, PowerBlade, SwitchBlade, and PolBlade
• 19” rack
