High-performance cryogenic detectors for maximum measurement precision
VIGO Photonics’ cooled HgCdTe photoconductor detectors are optimized for wavelengths of 14 µm, 16 µm, and 19 µm. They were specifically developed for FTIR spectroscopy and other demanding measurement applications that require high detectivity in the long-wave infrared range. The performance parameters needed for these applications can often only be achieved through cryogenic cooling, for example using liquid nitrogen at 77 K.
VLWIR detection at the highest level

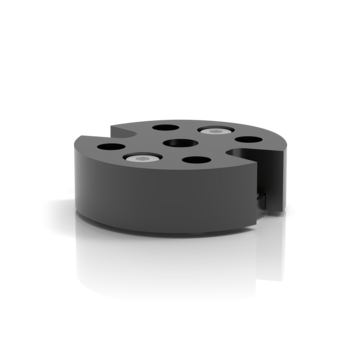

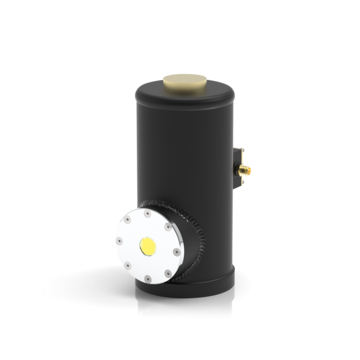

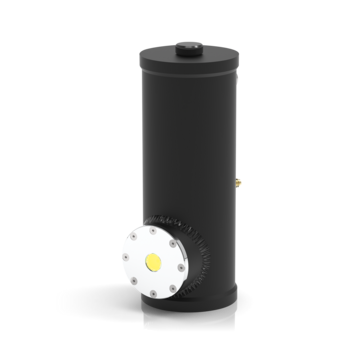

The detectors are available either as a Dewar assembly or in a flatpack housing, enabling flexible integration into dedicated measurement setups. Depending on the configuration, they cover long-wave spectral ranges extending into the VLWIR region and provide high sensitivity combined with stable noise characteristics. Large active areas, AR-coated windows, and minimized fringing effects ensure precise, reproducible signal processing – even under challenging measurement conditions.
Markets & Applications
- Scientific spectroscopy and laboratory measurement technology
- Gas analysis and environmental monitoring
- Industry, process control, and quality assurance
- Safety and sensor technology
Contact
Features
- Cutoff wavelength: 17.4 µm, 18.1 µm, or 20.0 µm
- Window with anti-reflective coating (AR) for optimized transmission
- Detectivity up to 1.9×10¹⁰ cm·Hz¹ᐟ²/W (8@ 77 K); 1/f corner frequency typically <1 kHz for low-noise applications
- Voltage responsivity up to over 500 V/W (depending on model)
- Resistance 25 Ω to 50 Ω
- Optimized for 77 K operation with stable bias current of 15 mA
- Power handling: up to 100 W/cm² (CW) or 1 MW/cm² (<1 µs pulses)
- Active area: 1×1 mm², optional 0.25×0.25 mm²
- Acceptance angle ~50°
Benefits
- High sensitivity for weak signals
- Anti-fringing solutions for minimal background noise
- Epitaxy and assembly within the EU for flexible manufacturing according to customer specifications
