Thermal Sensor Heads

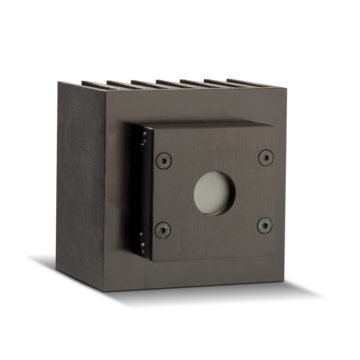

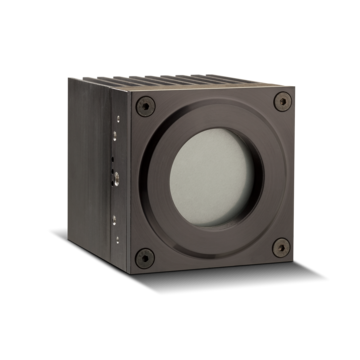

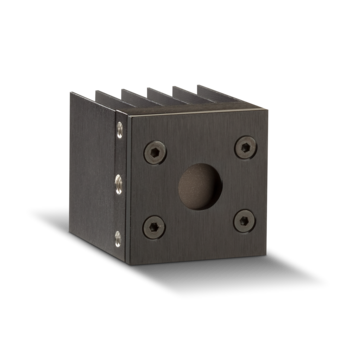

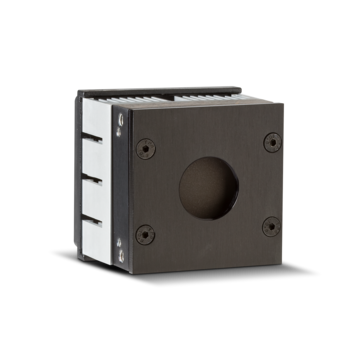

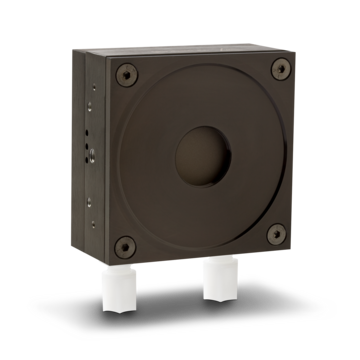

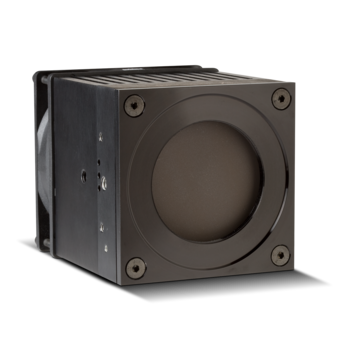

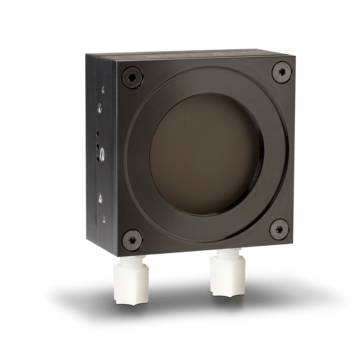

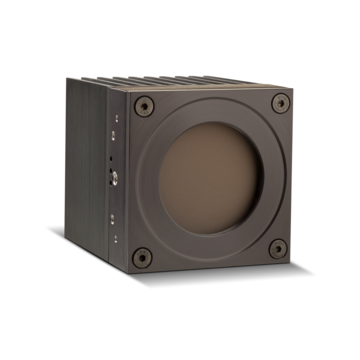

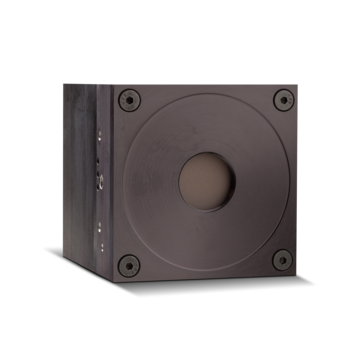

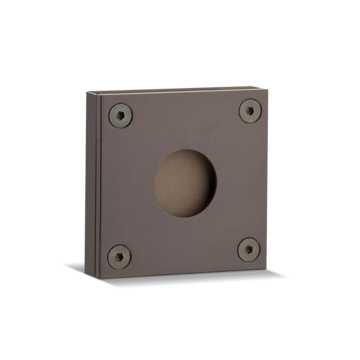

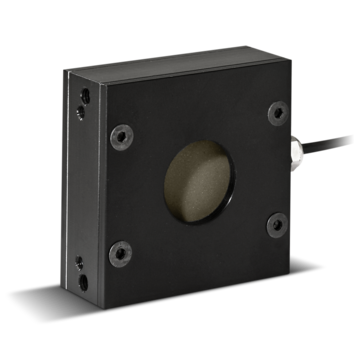

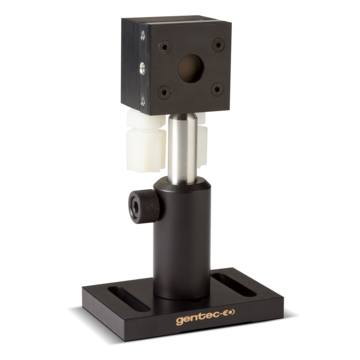

Thermal Sensor Heads - UP Series

As an OEM, we know space is often a constraint. This is why Gentec-EO offers very compact detectors to ease the integration inside machines. Up to 100 kW/cm² is the very high damage thershold. They have built their expertise on detector compactness on their exclusive modular design. Users can mix and match existing detectors and cooling modules from a large set of combinations, thus obtaining the smallest detector possible.

The fully integrable thermal sensor heads are designed as OEM sensors. It is possible to integrate them easily into existing system.

Key features:

• Complete thermal heads with cooling modules
• Several sizes, coolings and absorber choices:

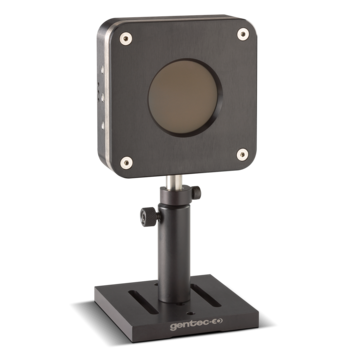

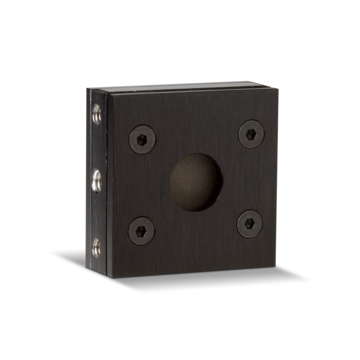

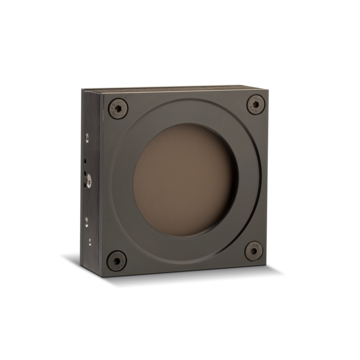

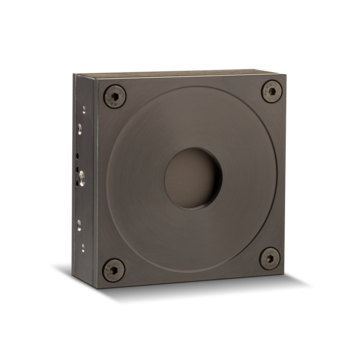

  • Effective aperture diameter: 12, 19, 25, 50, or 55 mm
  • Broadband or high damage thershold coatings

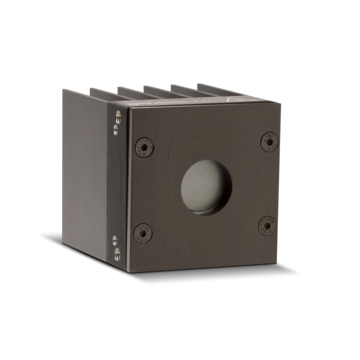

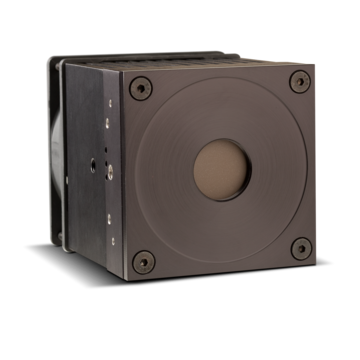

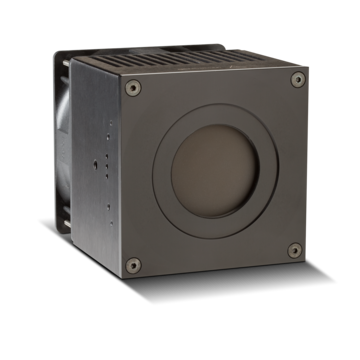

  • Convection, fan or water-cooled
• BNC, Molex or DB-15 connectors

There are three levels of integration possible:

1. Head only
2. Head with PCB & Connector
3. Head with PCB & Display (Monitor)

Thermal Sensor Heads with PCB

The UP series with PCB has nearly the same characteristics like Gentec-EO's themal sensor heads without PCB. They do have an internal PCB for amplification, anticipation and filtering.
