Single Photon Counting Modules

Single photon counting modules (SPCM) are used to count individual photons. LASER COMPONENTS' photon counters with the brand name COUNT^® offer high quantum efficiency, very low dark count rates (DCR) and a wide dynamic range.

Functionality and operation

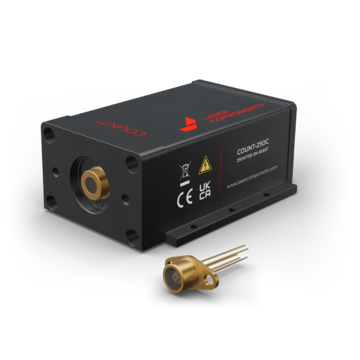

The modules of the COUNT^® series from LASER COMPONENTS consist of a particularly low-noise silicon avalanche photodiode and specially developed high-voltage (HV) electronics with quenching circuitry and temperature management. They can be operated at wavelengths between 400 nm and 1000 nm. Incoming photons generate avalanche-like electrical pulses that are read out at the TTL output.

100 % quality control
All specifications of our COUNT^® modules are checked at our in-house test station. This combines ultra-short pulsed diode lasers, computer-controlled motion stages and a reference power meter with a system for time-correlated single photon counting (TCSPC), the Time Tagger Ultra from Swabian Instruments.

Special features of the COUNT^® modules

• Single photon detection with high quantum efficiency
• Active quenching switch for defined short dead time and accurate measurement
• Extremely low dark count rate (DCR) with ≤10 Hz available
• Low afterpulse probability (AP)
• Short timing jitter
• Ultra-fast TTL pulses
• Optional fiber connection (FC)
