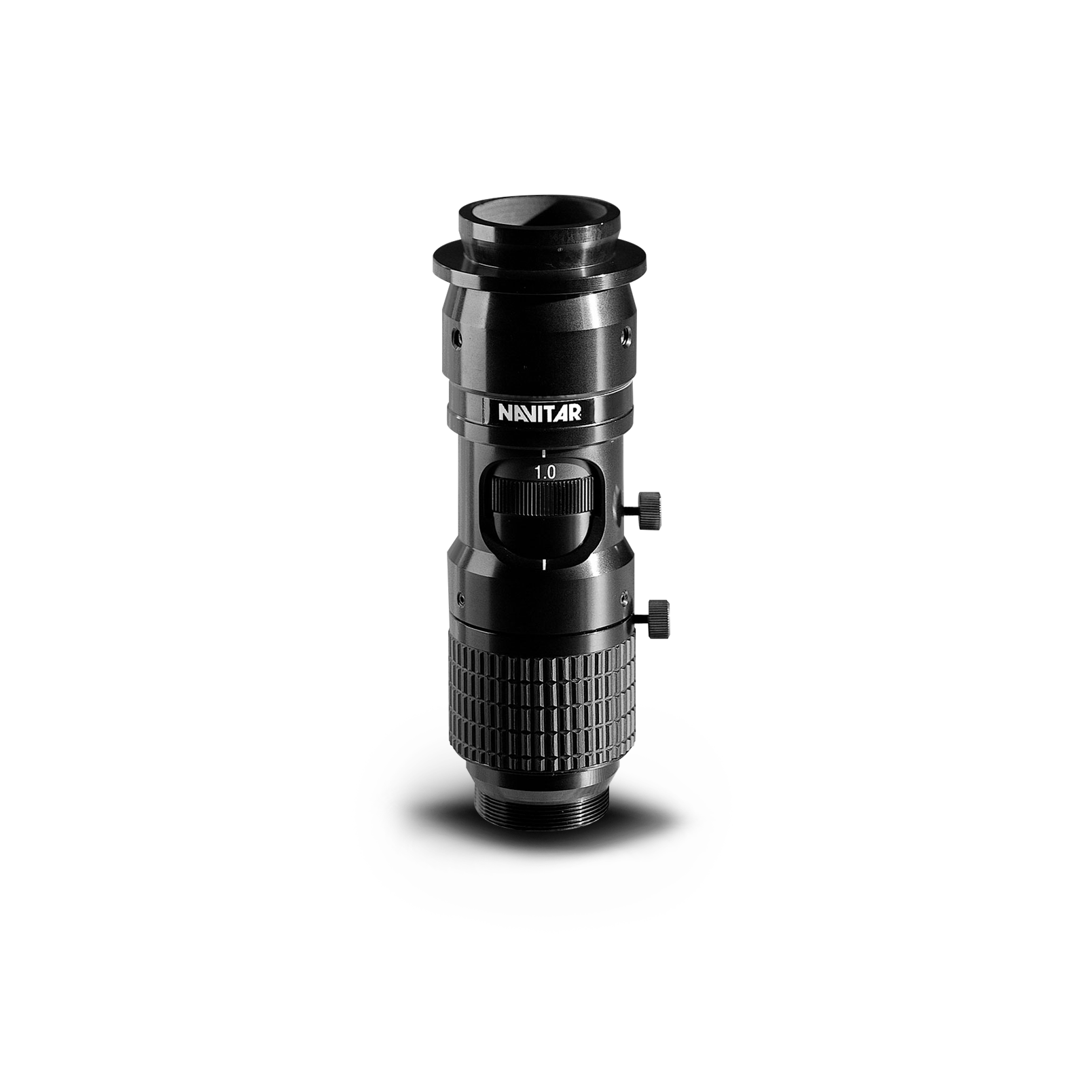

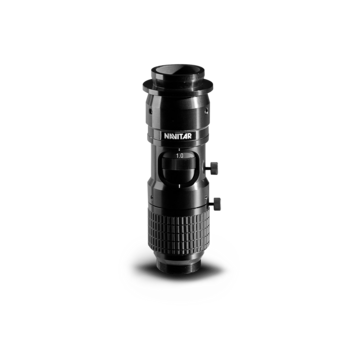

High Mag Zoom Lenses - Zoom 6000

A set of extremely versatile zooms for a dynamic magnification range of 0.09-393X.

A diverse selection of body tubes, accessory optics, motorized configurations and lighting techniques, make the Zoom 6000 Navitar’s workhorse system with unbeatable versatility.



Flexibility by Design

  • Dynamic magnification range of 0.09-393X offers incredible versatility.
  • High contrast images and vivid colors help your equipment perform better.
  • 0.01-125.68 mm field coverage allows you to view a wide range of parts.
  • Working distance can be varied from 34 to 390 mm.



Add infinity corrected objective lenses to achieve unmatched edge flatness and clarity.

Zoom 6000 Lens System - A Workhorse to Fit Nearly Any Application


With a diverse selection of body tubes, accessory optics, motorized configurations, and lighting techniques, the Zoom 6000 is Navitar’s workhorse with unbeatable versatility. This modular zoom lens system incorporates Navitar’s world-renowned optics. This "building block design" can be configured to fit nearly any application.





6.5:1 Zoom Ratio, Long Working Distance and Large Field of View


The parfocal optical system of the Zoom 6000 has a 6.5:1 zoom ratio, a 0.7X to 4.5X zoom range, and total magnification (depending on lens adapters and attachments used) of 0.09X to 393X. The working distance can be varied from 34 mm (1.3") to 390 mm (15.4"). The achievable field of view can vary from 0.01 mm to 125.68 mm.





Unsurpassed Optical Performance


The optical system of the Zoom 6000 produces images of the finest optical quality. Chromatic aberration and distortion have been virtually eliminated. With the Zoom 6000 lenses, images are crisp and clear and display optimum contrast with minimum flare over the entire field of view.





Manual or Detented for Calibrated Repeatability


The Zoom 6000 lenses are available in a manual design, as well as a detented version for calibrated repeatability.





Motorized for Automation


If you are building highly automated systems, Navitar can offer you a wide selection of motorized lenses and control equipment. Please see the motorized section of the catalog.
