Pyroelectric Detectors

Products

New

Advanced single channel voltage mode detectors for FTIR instruments.

Excellent linearity and fast response to IR flux change.

An IR filter makes all the difference. Thermal detectors are naturally polychromatic, and a filter is needed to detect specific gases/wavelengths.

Pyroelectric crystals generate positive and negative charge carriers simultaneously on opposing sides.

The LD21XX and DD31XX series are exclusive pyroelectric detectors in which both crystal sides are amplified separately.

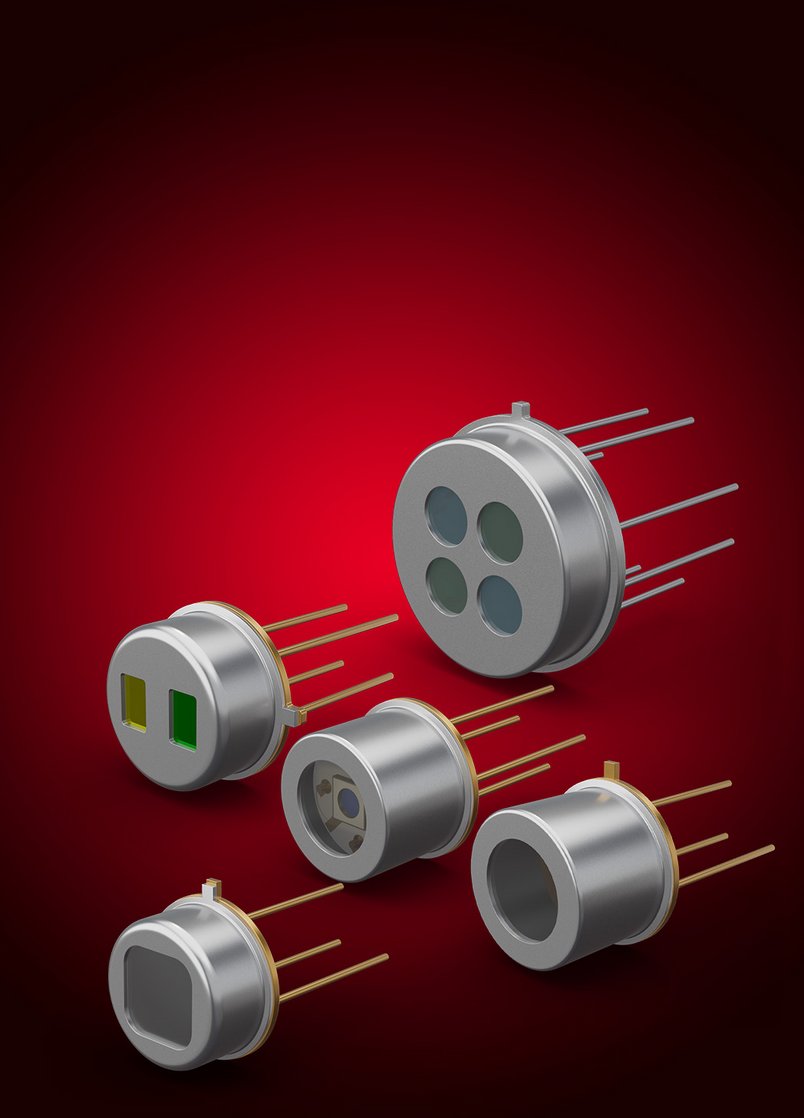

Multi-channel pyrodetectors: dual-channel, triple-channel and quad-channel versions are available.

Single channel pyroelectric detectors made of LiTaO₃ are available for current mode (CM). They are used for gas detection and flame detection.

DLaTGS detectors exhibit the most effective pyroelectric effect known. Their major application is FTIR.

DLaTGS = Deuterated Lanthanum α Alanine doped TriGlycine Sulphate

Detector Selector

Find the right Detector with just a few clicks

Your Detector
Search Results

4 Detectors

*) Size: Diameter for round, side length for square detector surfaces

Show search results

	Component Designation Datasheet	Wavelength	Size*	Package	Quantity requested
Produkt
	PR No1 Pyroelectric Receiver	Download datasheet	WavelengthFIR - THz (>15 µm)	Size2 mm	PackageOther	Thank you. The product has been added to your request. Request now
	ALT3151X2000	Download datasheet	WavelengthLWIR (8-15 µm)	Size2 mm	PackageTO	Thank you. The product has been added to your request. Request now
	D3151X1300-k1	Download datasheet	WavelengthLWIR (8-15 µm)	Size1.3 mm	PackageTO	Thank you. The product has been added to your request. Request now
	LT3111X2020	Download datasheet	WavelengthMWIR (~ 2.6-8.0 µm)	Size2 mm	PackageTO	Thank you. The product has been added to your request. Request now
