Compact Modulators for Demanding Fiber Laser Systems

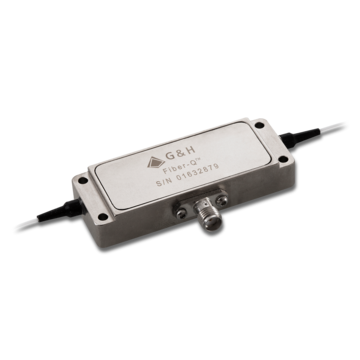

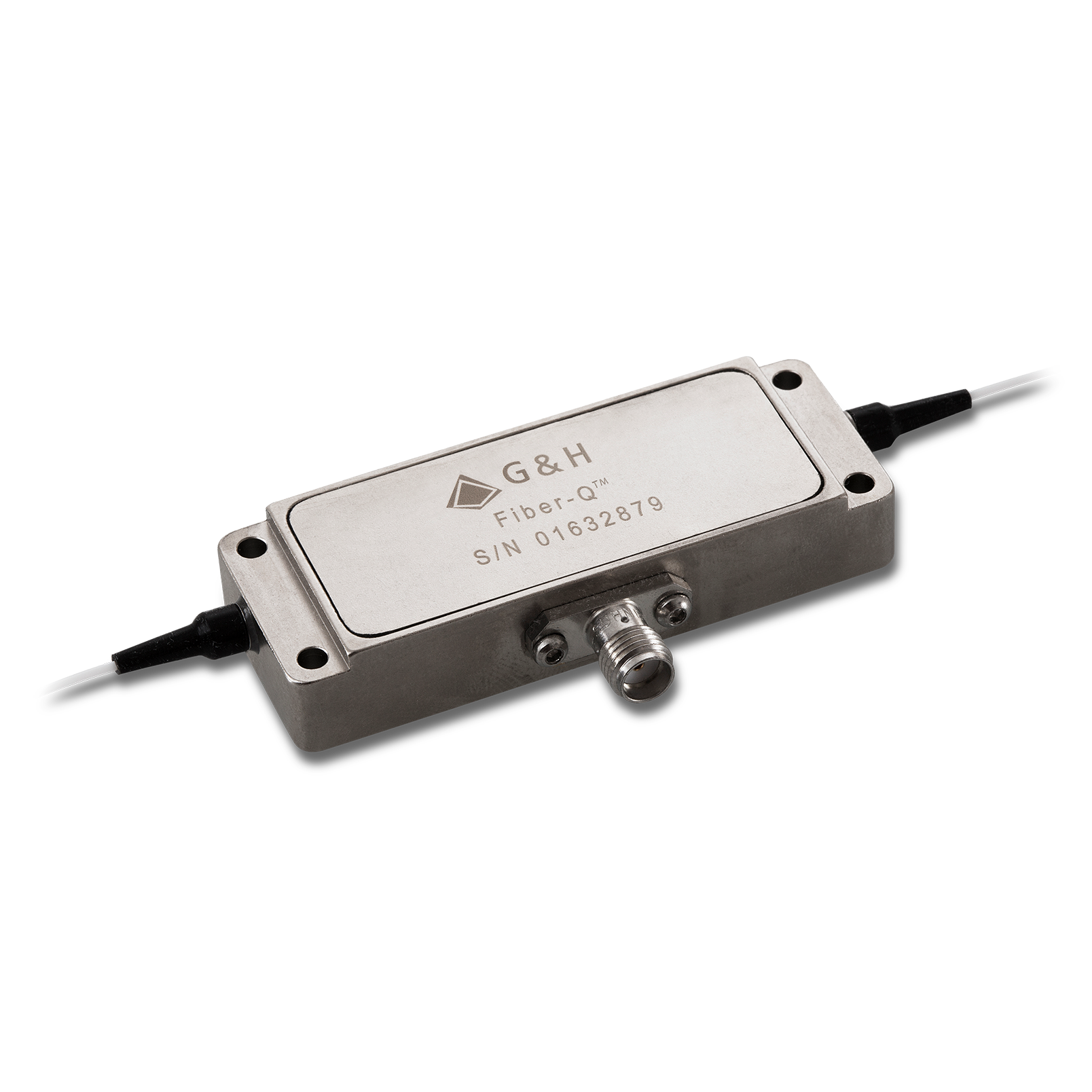

G&H's Fiber-Q fiber-coupled acousto-optic modulators (FCAOMs) provide a robust all-fiber solution for high-speed amplitude modulation of fiber and fiber-coupled lasers. They enable precise control of pulse timing, duration, and optical power while maintaining excellent optical performance. Leveraging G&H's proprietary technology, the Fiber-Q series combines high extinction ratios, low insertion loss, and exceptional long-term stability in a compact, hermetically sealed package. These characteristics make the modulators ideal for integration into OEM, industrial, medical, and scientific laser systems.
Engineered for Demanding Applications
Fiber-Q modulators are available in both polarization-maintaining (PM) and non-PM configurations. They cover visible and near-infrared wavelength ranges and are available with RF operating frequencies of up to 300 MHz. Their rugged, hermetically sealed design ensures reliable performance even in demanding environments. In addition to high-speed amplitude modulation, FCAOMs can also provide precise optical frequency shifting, making them well suited for applications such as optical heterodyne interferometry, microscopy, flow cytometry, and advanced fiber-laser instrumentation.
Markets & Applications
- Medical technology
- Biotechnology and life sciences
- Scientific instrumentation
- Laser technology
- OEM equipment manufacturing
Contact
Features
- Wavelengths: 780–2000 nm
- Operating frequencies: 80–300 MHz
- Rise/fall times: 6–50 ns
- Optical power handling: up to 1 W
- Peak optical power handling: up to 1 kW (pulse-width dependent)
- Insertion loss: max. 3–6 dB
- Extinction ratio: min. 50 dB
- Return loss: min. 40 dB
- Polarization extinction ratio: min. 15–18 dB (PM models)
- Fiber length: min. 1.5 m with 900 µm sleeving
Benefits
- Precise control of laser pulses
- Maximum optical efficiency
- Reliable long-term performance
- Easy integration into fiber systems
