Precision Control for Reliable AO Operation

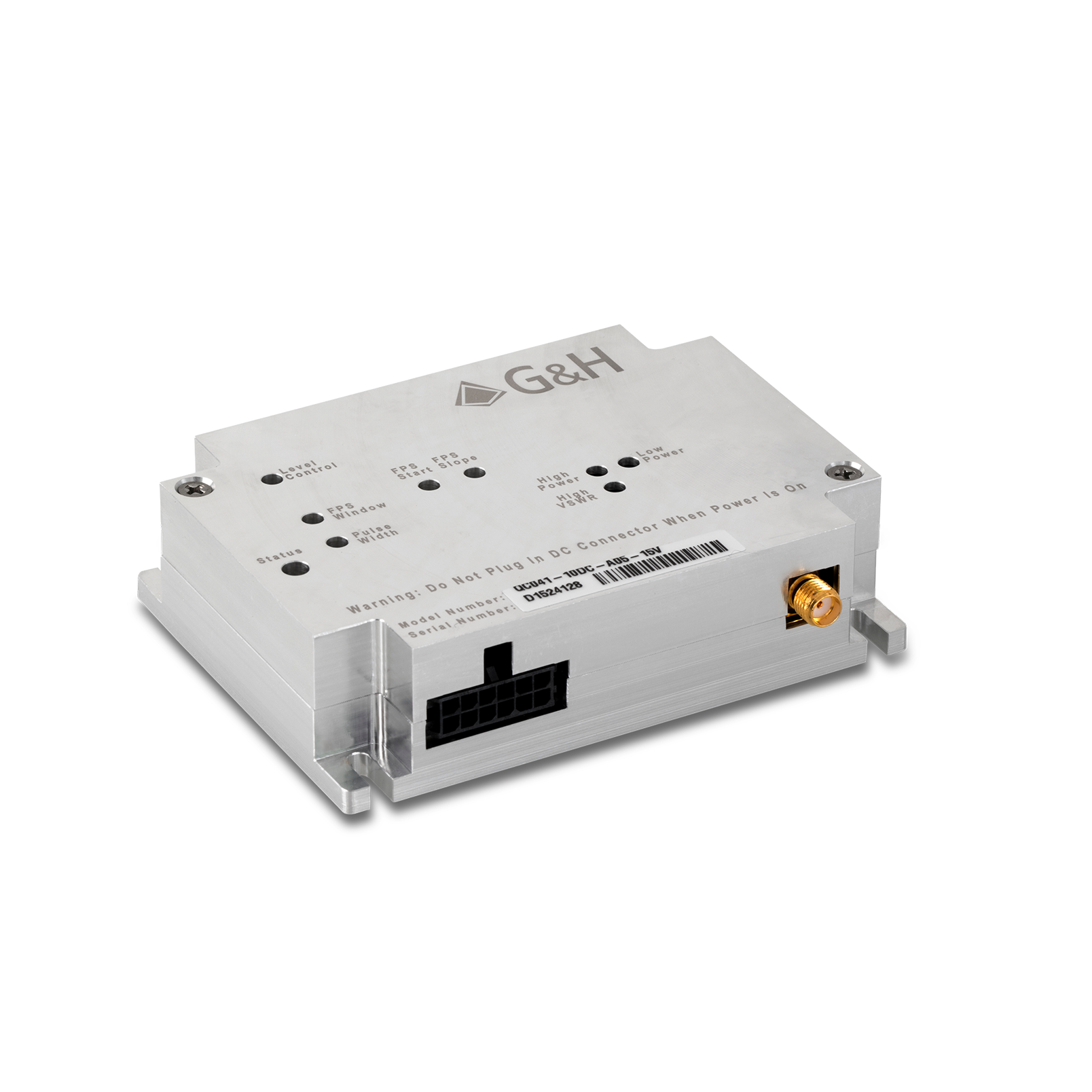

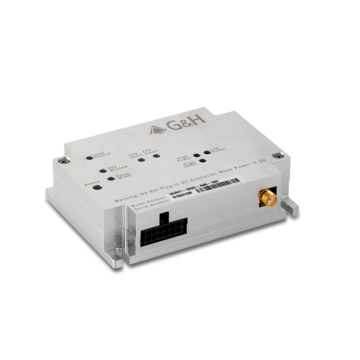

G&H RF drivers are designed to maximize the performance of acousto-optic modulators, Q-switches, deflectors, and frequency shifters. The product range combines high frequency stability with flexible analog and digital modulation capabilities, enabling precise control of optical systems in industrial, scientific, and OEM applications. Application-specific options such as pulse shaping, synchronization, first-pulse suppression, and multi-channel operation allow the drivers to be optimized for demanding photonics environments.
Built for Speed, Stability, and Control
Depending on the model, the drivers cover frequencies from approximately 20 MHz to 500 MHz and provide output powers ranging from a few watts to more than 20 W. Common features include quartz-stabilized RF generation, TTL-compatible digital modulation, analog power control, and high-speed switching. Selected models support pulse rates up to several megahertz, zero-cross synchronization for improved pulse-to-pulse stability, and configurable operating modes tailored to AO modulation and laser Q-switch applications.
Markets & Applications
- Industrial laser processing
- Semiconductor manufacturing
- Spectroscopy & analytics
- Scientific research
- Medical photonics
- Defense & aerospace
Contact
Features
- Operating frequencies from 20 MHz to 500 MHz
- RF output power up to 24 W (model-dependent)
- Frequency stability of ±0.01 % (quartz stabilized)
- Pulse rates up to 1 MHz for Q-switch applications
- Pulse rates up to 10 MHz for pulse-picking applications
- Rise/fall times of ≤ 35 ns
- RF output impedance of 50 Ω
- Analog control voltage range of 0 to +5 VDC
- Extinction ratio of ≥ 50 dB
- Supply voltages of +12 VDC, +15 VDC, or +24 VDC
Benefits
- Precise and reliable AO control
- Flexible integration into any system
- Fast and precise modulation
- Optimized for demanding photonics applications
