Reliable Pulse Generation for OEM Laser Systems

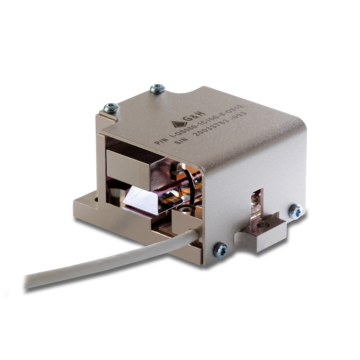

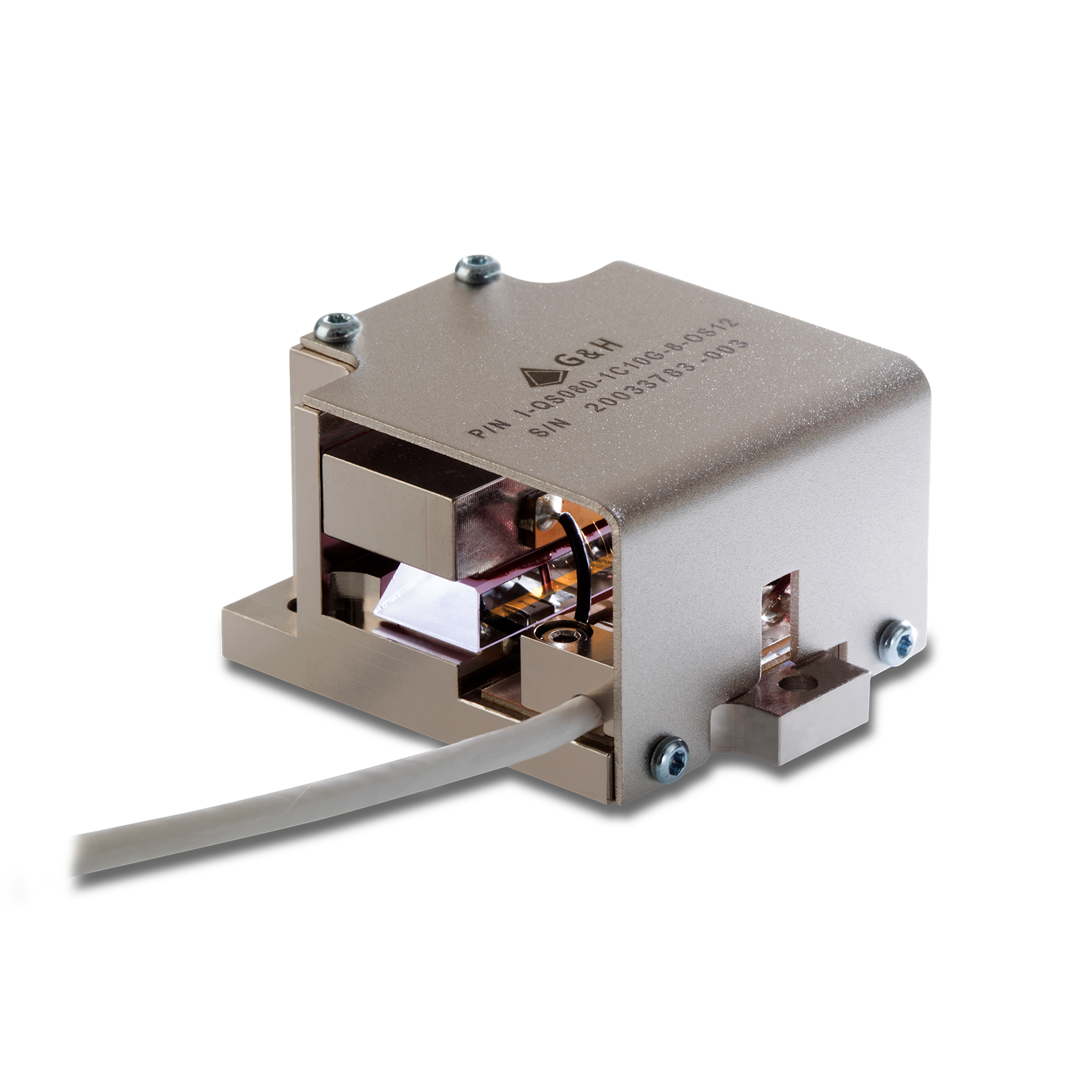

G&H’s acousto-optic Q-switches are designed to generate high-intensity laser pulses by actively controlling the Q-factor of a laser cavity. Their low insertion loss, high peak-power handling capability, and excellent pulse-to-pulse stability make them ideal for demanding industrial, medical, scientific, and OEM laser applications. A wide range of standard and custom configurations allows precise matching to specific laser parameters, ensuring optimum performance, reliability, and long service life.
Tailored Performance Across a Wide Parameter Range
The product range covers wavelengths from approximately 1030 nm to 2100 nm and includes models with active apertures from less than 1 mm up to 8 mm. Depending on the series, devices operate at frequencies between 24 MHz and 80 MHz and use crystalline quartz or fused silica as optical materials. Both conduction-cooled and water-cooled versions are available, supporting a broad range of beam diameters, laser powers, and polarization states. Dedicated RF drivers with advanced synchronization and control functions are offered for optimum system integration.
Markets & Applications
- Industrial manufacturing
- Semiconductor & electronics
- Medical technology
- Scientific research
- Defense & aerospace
Contact
Features
- Wavelength range from 1030 nm to 2100 nm
- Active apertures from <1 mm to 8 mm
- Operating frequencies from 24 MHz to 80 MHz
- RF power handling up to 70 W
- Available in conduction- and water-cooled versions
- Optical materials: Crystalline quartz or fused silica
- Supports laser beam diameters up to 8 mm
- Specialized designs with up to 96% single-pass loss
- Models for wavelengths from 1064 nm to 2100 nm
- Dedicated RF drivers for synchronized Q-switch operation
Benefits
- Higher pulse energy
- Optimized laser performance
- Reliable and consistent results
- Simplified OEM integration
