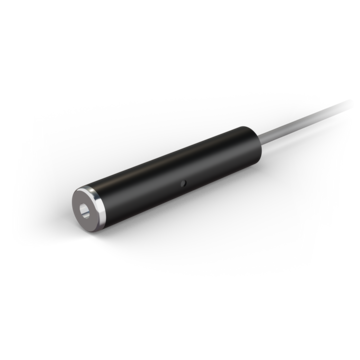

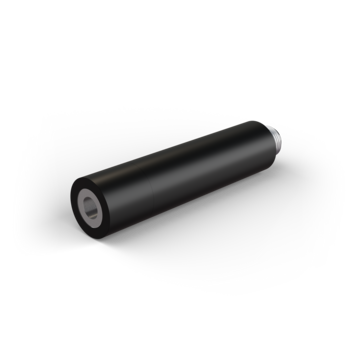

FLEXPOINT® Line Laser Modules

Positioning line lasers from 405 nm - 905 nm with different fan angles.

LASER COMPONENTS offers standard and customized line laser modules in the wavelength range from 405 nm to 905 nm with a crisp line and Gaussian power distribution. Different housings are available (small with 11.5 mm diameter or ruggedized with 19 mm). Due to sophisticated in-house designed electronics a wide range of output power levels can be applied.

Positioning Line lasers can be produced with different fan angles to ensure that the correct line length is projected in the required working distance. Upon request, the laser line can be optimized for a customer-specified working distance in order to produce optimal imaging results (e.g., line width). Our FLEXPOINT® line lasers are available with fixed focus in the wavelength range from 405-905 nm. The output power can be set according to customer specifications from a few microwatts up to 100 mW. We also build laser modules assigned to specific laser classes (e.g., laser class 1, 1M, 2, 2M, or 3R).

As an option, FLEXPOINT® line lasers can be modulated or equipped with an external power adjustment. The supply voltage is typically 4.5-6 VDC or 4.5-30 VDC. Standard housings measure 57 mm x 11.5 mm or 77 mm x 19 mm; however, customer-specific housings can also be applied.



Highest quality, recognized worldwide

For precise positioning, alignment and measurement systems, a high-quality laser source is essential. Customers worldwide rely on the laser modules of the FLEXPOINT® series as they meet highest quality standards.

All FLEXPOINT® laser modules are "Made in Germany". They have been the standard in positioning and measurement tasks for more than 10 years.



Areas of Use

FLEXPOINT® line lasers are used for positioning and alignment tasks in the medical field, industry, and laser system technology. They are necessary to position patients, to align machines or to position work pieces in production and are also used in measurement technology (e.g. tire inspection) or in warehouses (e.g. as guidance and for safety of autonomous mobile robots).

Features

  • Wavelengths from 405 nm to 905 nm with fixed focus to the defined working distance 
  • Fan angles from 5° to 100° to achieve the required line length
  • Well suited for industrial alignment, patient positioning and measurement tasks
