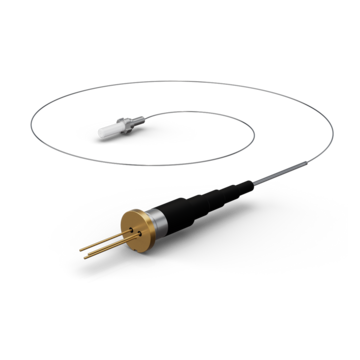

Pulsed Laser Diodes with Fiber Pigtail

Fiber pigtailed pulsed laser diodes. 905 nm and 1550 nm versions available.

Quick selection! Click here to find the laser diode you need and check its data sheet.

Laser Diode Selector

Pigtailed Pulsed Laser Diodes

LASER COMPONENTS Canada, Inc. presents fiber-coupled pulsed laser diodes at 905 nm and 1550 nm. The high coupling efficiency of these lasers is achieved through a special coupling technique.

Performance

With a semi-automatic mounting setup, fibers can be precisely assembled to within just a few µm. This allows coupling efficiencies of > 85% to be achieved. Depending on the laser diode chip and fiber core diameter, peak power levels of > 65 W out of the fiber can be reached.

Customer-Specific Products and Standard Versions

We not only offer standard versions, but customer-specific versions as well. In fact, our ability to develop inexpensive customer-specific solutions is one of our strengths. Please contact us.

The pigtailed pulsed laser diodes are available on a standard basis at wavelengths of 905 nm and 1550 nm.

The following versions are available:

905 nm pulsed laser diodes

  • 12 W from a 105 µm fiber
  • 145 W from a 400 µm fiber

1550 nm pulsed laser diodes

  • 7 W from a 105/125 µm fiber (NA 0.15)

Quick selection! Please open our laser diode selector to find a laser diode that meets your requirements.

Laser Diode Selector

Supplier

Accessories

Beyond Borders

L-Cube Series L-Cube Series
Pulsed Laser Diode Modules

The pulsed laser diode driver is directly integrated into the modules.

IR Sensor Card IR Sensor Card
Conversion Screens

Our conversion screens make your laser visible in the range from 250-600 nm, 700-1700 nm, and 1.5 20 µm.

General Information

about Pulsed Laser Diodes

Pulsed laser diodes (PLDs) are available in the wavelengths 850 nm, 905 nm and 1550 nm.

All of our PLDs are developed and manufactured at our Laser Components production facility in Canada. Customer-specific requests can, therefore, easily be accommodated.



Fields of Applications

  • Laser rangefinding
  • Speed guns
  • Laser scanners
  • Defense & security
  • Automotive industry
  • Medical technology
  • Measurement technology

Different Wavelengths - High-Quality Housing
The standard range consists of pulsed laser diodes with the following wave-lengths: 850 nm, 905 nm, or 1550 nm. We differentiate between two product lines: high-end PLDs and low-cost PLDs. Both product lines have a high-quality metal housing in  common.

Low-Cost Series
The high-volume/low-cost series con-sists of pulsed laser  diodes in a metal housing that are best suited for  consumer  products such as laser rangefinders. SMD housings are also  available. In 2018 our first 80 W PLD received automotive qualification according to AEC-Q101.

SMD PLDs
The SMD-Option allows for high laser powers from a small housing.

QuickSwitch® PLDs
The QuickSwitch® series integrates the key components of the pulsed laser drive circuit into the same com-pact TO package as the laser chip. With a pulse width of only 2.5 ns, the QuickSwitch® devices are currently the fastest hybrid pulsed laser diodes available. Output powers from 72 W are offered.

Winfried Reeb
If You have any Questions
Click here

Laser Diode Selector

Find the right laser diode with just a few clicks

What suits your requirements?

Find the right laser diode with just a few clicks. Just select your specifications in the search mask and you get an instant overview of all the laser diodes that meet your requirements. This way you don’t have to tediously search through our extensive standard product range.
Did the search engine throw up several results or did it actually happen that we don't have a laser diode in our range to meet your requirements? No problem! Get in touch with your contact person. We will be happy to help you with your selection or work with you to develop a new laser diode that best suits your application.

Type
Power
Package
Wavelength [nm]

Your Laser Diode
Search Results

62 Emitters

Component
Datasheet
Wave­length
Power
Package
Tempera­ture
Quantity requested
Produkt
Other Package
850D1S09X
Download datasheet Wave­length850nm Power13000mW PackageOther Tempera­ture85°C
Other Package
905D1S1.5X
Download datasheet Wave­length905nm Power3000mW PackageOther Tempera­ture85°C
905D1S03UA
Download datasheet Wave­length905nm Power6000mW Package5.6 mm Tempera­ture85°C
905D1S03UAS
Download datasheet Wave­length905nm Power6000mW Package5.6 mm Tempera­ture85°C
Other Package
905D1S03X
Download datasheet Wave­length905nm Power6000mW PackageOther Tempera­ture85°C
905D1S09UAS
Download datasheet Wave­length905nm Power9000mW Package5.6 mm Tempera­ture85°C

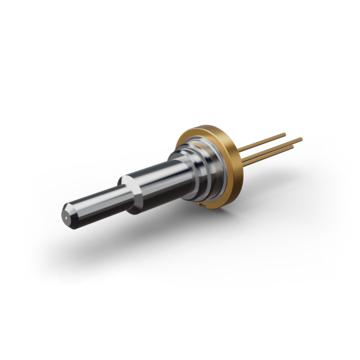

Fiber Pigtail Package
905D1S3J03FP-10/22-F-0-01
Download datasheet Wave­length905nm Power12000mW PackagePigtail or Receptacle Tempera­ture85°C
Other Package
905D1S06X
Download datasheet Wave­length905nm Power13000mW PackageOther Tempera­ture85°C
905D1S09UA
Download datasheet Wave­length905nm Power19000mW Package5.6 mm Tempera­ture85°C
Other Package
905D1S09X
Download datasheet Wave­length905nm Power19000mW PackageOther Tempera­ture85°C
Your Product Selection

Custom Solutions

Pulsed Laser Diodes customized to your needs

SMD Package SMD Package

Cost-Effective, Even When Produced in Small Amounts

Close cooperation between customer and manufacturer has been our greatest success factor in manufacturing optimally customized  products. Our customers are often pleasantly surprised by how reasonable our prices are for customized products.

LASER COMPONENTS Canada develops pulsed laser diodes (PLDs)  suited to your field of application. Almost all product parameters can be adjusted e.g., wavelength, output power, and housing. It is also possible to develop completely new products.

Uncompromising Quality
Quality is an absolute imperative. The consistent application of  quality  management methods has resulted in the continuous advancement of  products. New products and increasing efficiency are in constant demand.

As part of quality control, a life test rack was developed to simulate very different applications. The pulsed laser diodes being tested on the life rack are pushed beyond their approved limitations.
