Compact and flexible line laser with homogeneous power distribution
With a housing of 54 mm x 11.5 mm standard housing with adjustable focus, the FLEXPOINT® MVnano lasers are suited as stand-alone products or for integration in very different applications such as sensors or 3D scanners.
The focusing mechanics was fundamentally reworked in the 2025 edition so that the modules are protected against dust, splash water and the ingress of moisture. The beam drift during focusing has been reduced to a minimum. If your existing system design makes it necessary, you can still obtain the MVnano modules with older mechanics and dimensions.
There are several optics available for selection that offer the best match between line thickness and depth of focus for each application.

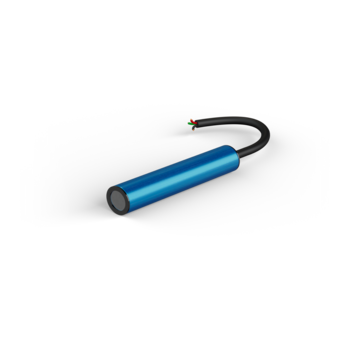

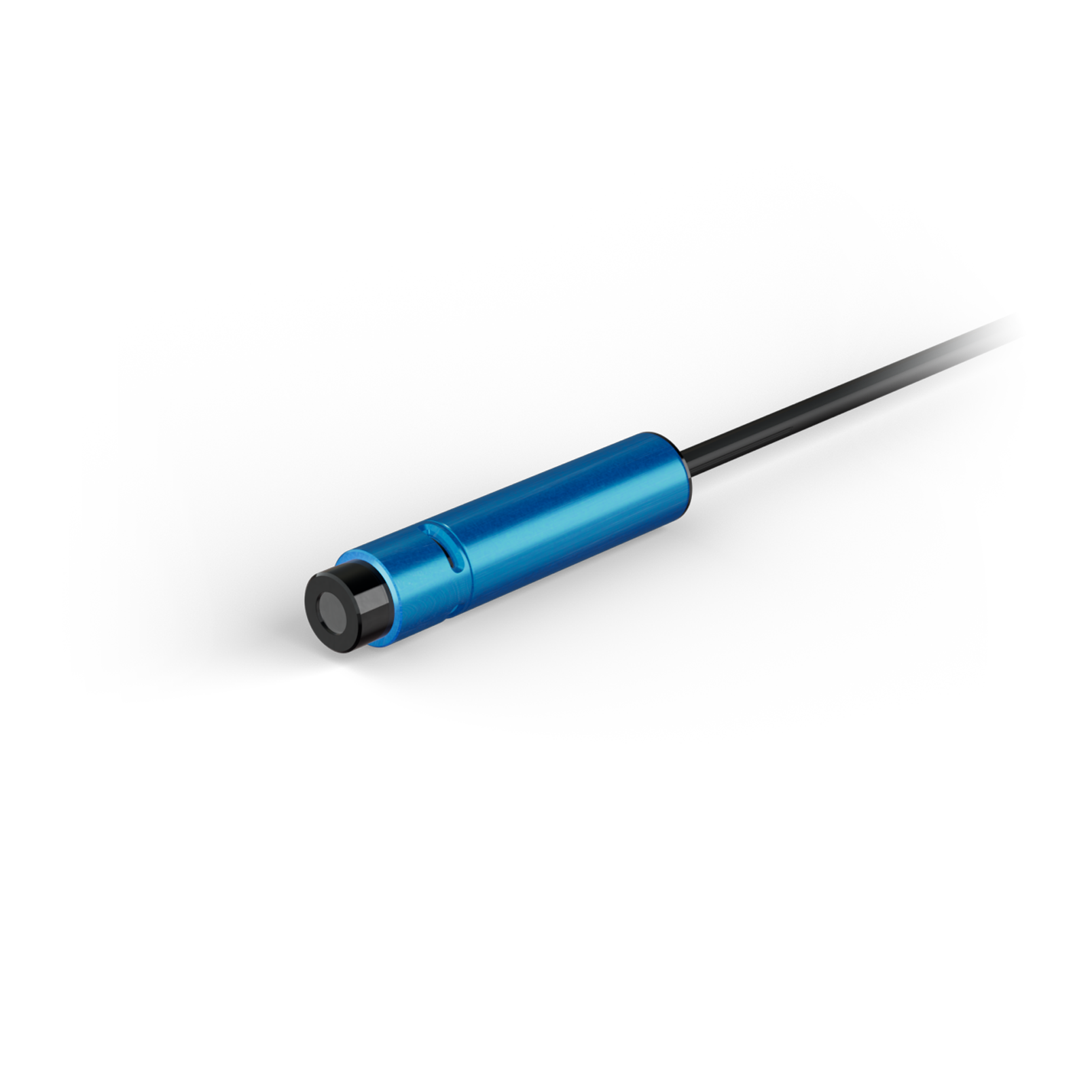

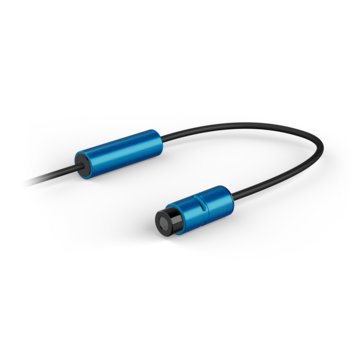

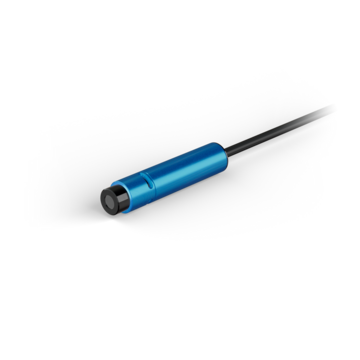

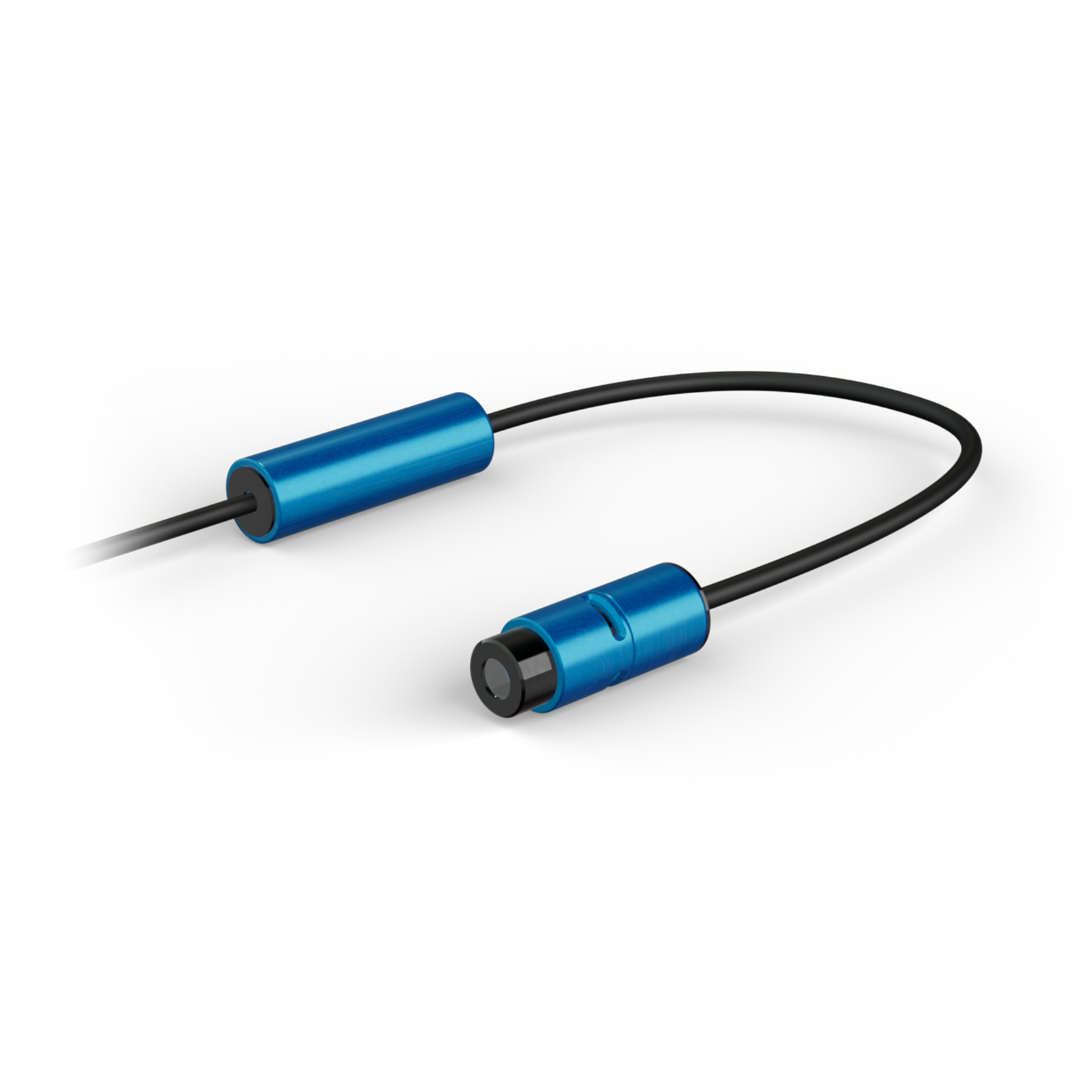

The MVnano modules are available with either an adjustable or a fixed focus. The fixed focus is set before leaving the factory. Versions with two housing which means separated optical and electronic elements are particularly space saving. One version is also available without an electronic control unit for integration in camera systems. In this case, the electronic driver for the laser module needs to be provided by the customer. In case you did not find the right match in our data sheet please contact us – we are happy to come up with a tailored solution.
Applications
- 3D machine vision
- Integration in 3D sensors
- 3D scanners
- Gap control during vehicle and aircraft turbine control
Contact
Features:
- Superior line quality for a variety of wavelengths
- Fixed and adjustable focus available
- 24V Modulation available
- New focussing mechanism
Supplier
FAQs
Beyond Borders
What advantages does the 2025 focusing mechanism of the FLEXPOINT® MV modules offer?
The 2025 focusing mechanism of the FLEXPOINT® MV laser modules MVpico, MVnano and MV18 offers a more robust design, particularly resistant to dust, humidity and water splashes. The modules are also more compact, and beam deviations during the focusing process have been further reduced. Handling remains as simple as ever.
For which applications are the FLEXPOINT® MV modules with the 2025 focusing mechanism particularly suitable?
The FLEXPOINT® MV modules are particularly suitable for demanding applications in industrial image processing (machine vision), such as in wood, metal and stone processing, where harsh conditions due to dust and water prevail.
Which FLEXPOINT® models are available with the 2025 focusing mechanism?
The FLEXPOINT® MVpico, MVnano and MV18 models are currently available with the 2025 focusing mechanism.
Can the FLEXPOINT®-MV modules still be ordered with older focusing mechanisms?
Yes, on request, LASER COMPONENTS continues to offer its modules with older mechanics if this is necessary for existing sensor designs, for example.
Line Width Simulation
Line width
simulation
With the line thickness simulator, you can calculate the line thicknesses and the depth of focus of our MV line lasers with different optical configurations and focal distances.
