Small and flexible

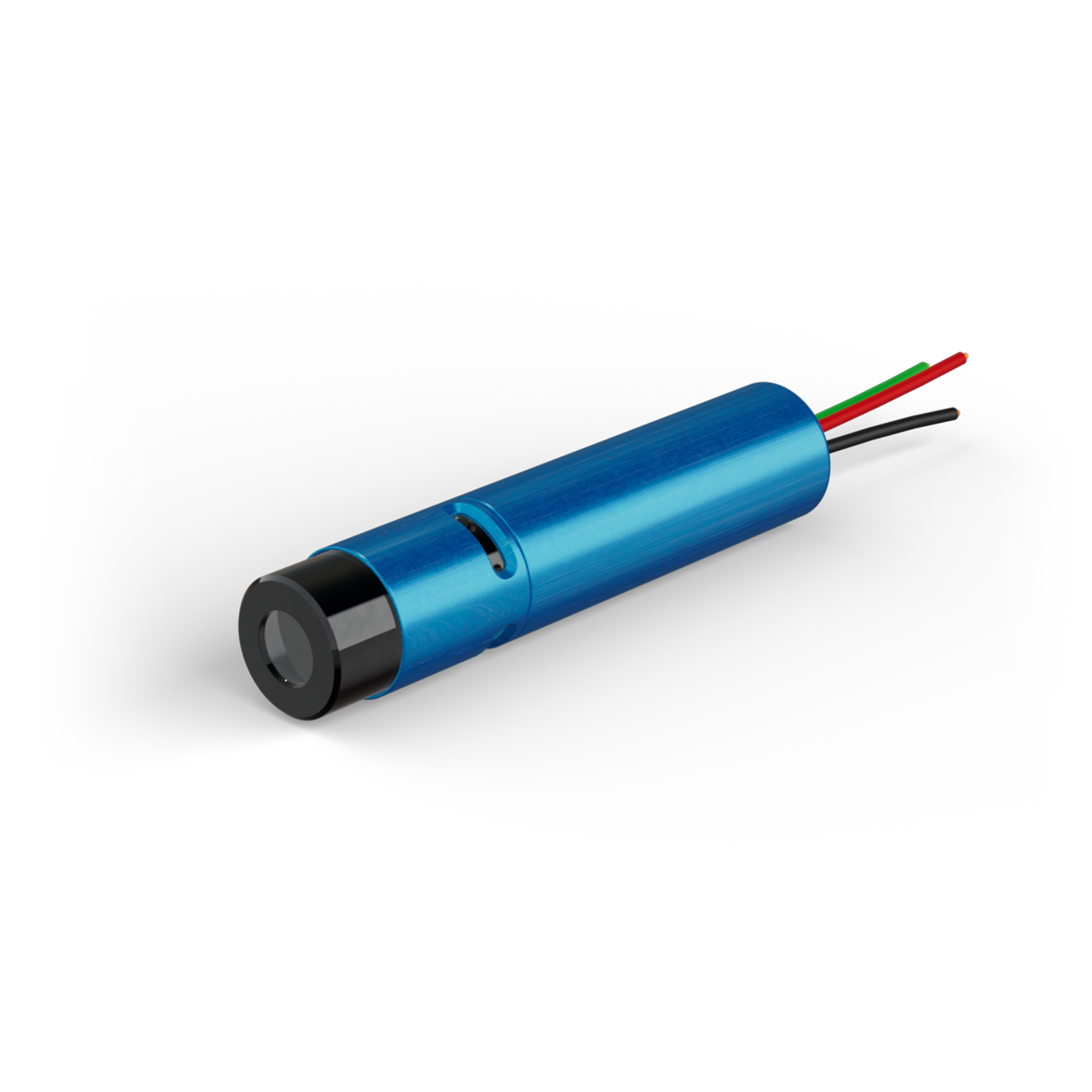

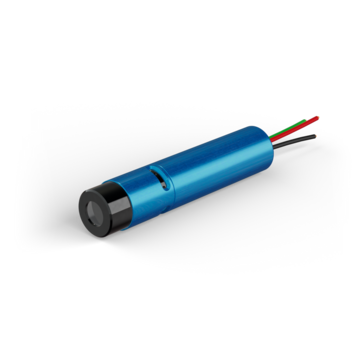

MVpico series line lasers are just 47 mm long and have a diameter of 10 mm. They are therefore well suited for integration in intelligent 3D sensors. Despite their small housing, they achieve an output power of up to 100 mW.
MVpico lasers are equipped with the 2025-edition focusing mechanics which protects them against dust, splash water and the ingress of humidity. The beam drift during focusing has been minimized even further. On request, the modules in the MVpico series are also available with predecessor dimensions.
A variety of optics guarantees the best combination of line thickness and depth of focus for each application.

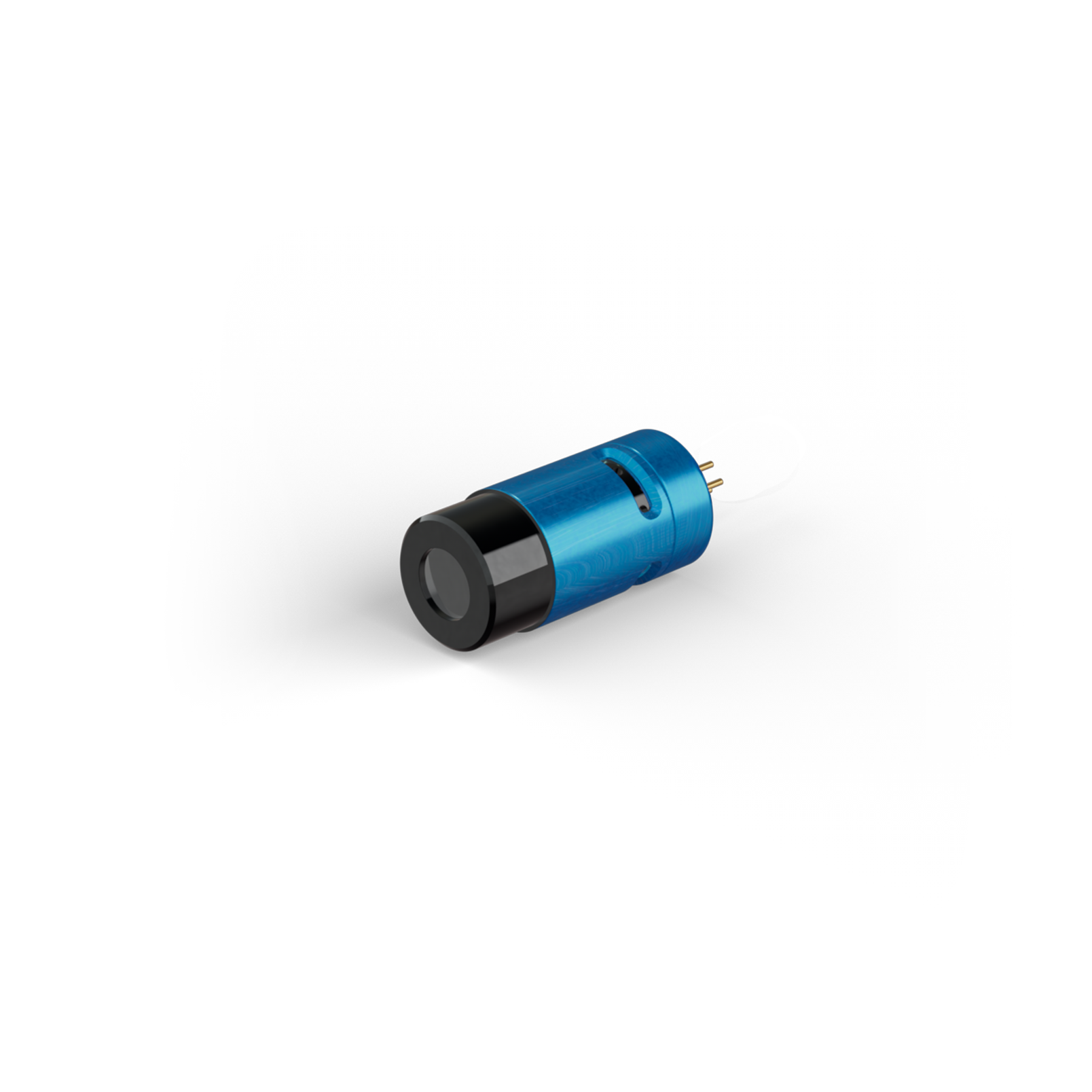

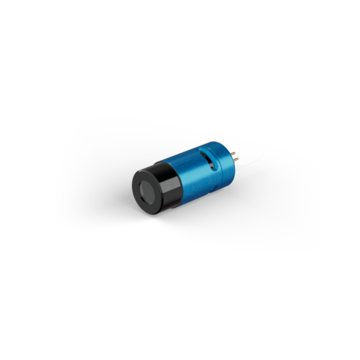

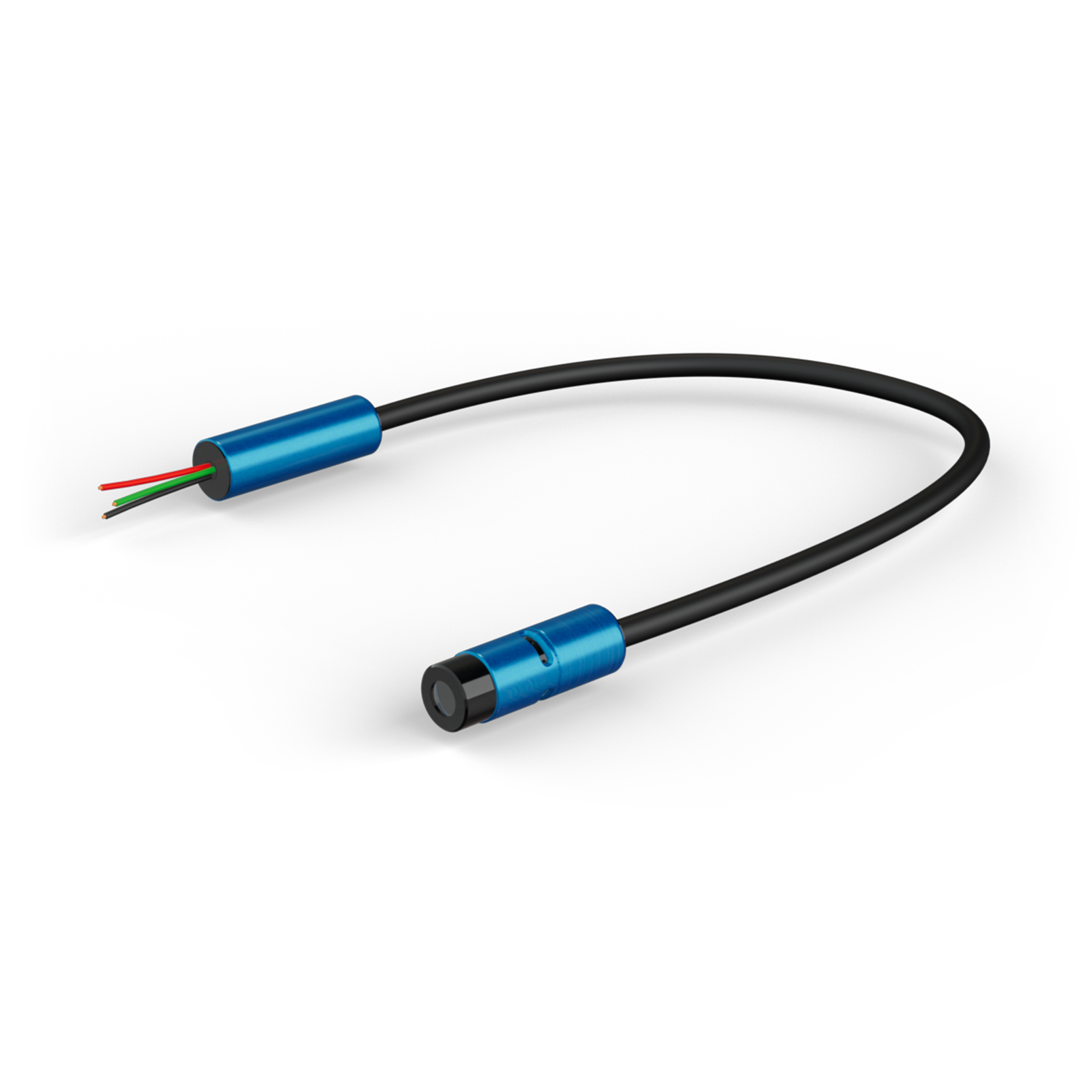

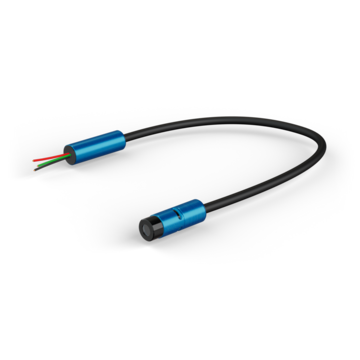

MVpico modules are available in different versions: with an adjustable focus, with a fixed focal point that is set during factory production, with separate optical and electronic elements, and without control electronics.
All FLEXPOINT® lasers are manufactured at production sites that belong to the LASER COMPONENTS Group. Thus, we have the unique ability to flexibly respond to customers’ requests. Simply let us know what your needs are and together we will find a solution for your custom-configured laser module!
Contact
Features
- Superior line quality for a variety of wavelengths
- Fixed and adjustable focus available
- 24 V Modulation available
- Possible applications: 3D machine vision, integration in 3D sensors, 3D scanners, industrial inspection and quality control
Supplier
Line Width Simulation
Line width
simulation
With the line thickness simulator, you can calculate the line thicknesses and the depth of focus of our MV line lasers with different optical configurations and focal distances.
Proceed as follows:
Related Products
See all MV Lasers and Accessories

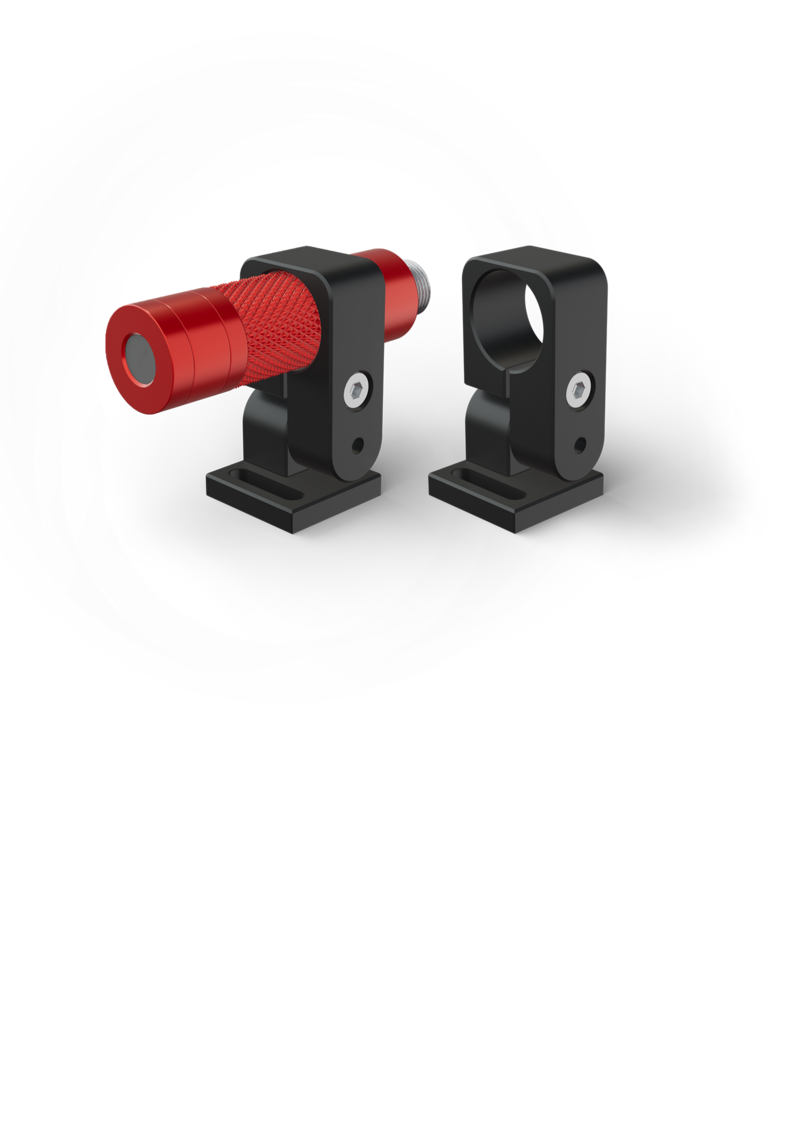

For safe operation of laser modules Laser Components offers various accessories.
